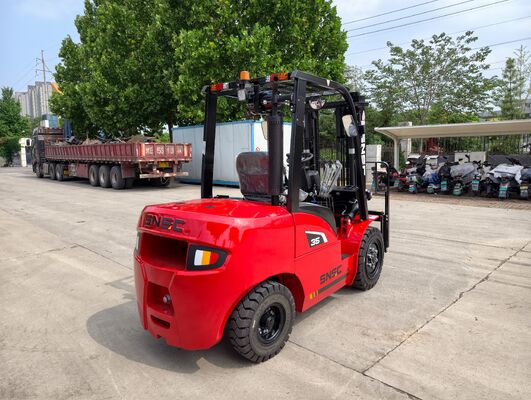

SNSC FD35 3.5-Ton Diesel Forklift Truck — 3500 kg Heavy-Duty Industrial Lift
Product Advantages
Built for strenuous industrial assignments, this 3.5-ton diesel forklift delivers reliable handling capacity for loads up to 3,500 kg.
The responsive hydraulic arrangement allows operators to control elevation, descent, and fork alignment efficiently.
A solid steel frame and strengthened mast design enhance stability and durability during repeated operations.
The cabin layout provides generous working space, practical control access, and improved frontal visibility.
Common uses include warehouse stacking, factory transport, terminal loading, construction supply handling, and outdoor logistics work.
Warranty protection lasts for one year, with online technical help available at any time.
Product Introduction
The SNSC FD35 is a 3,500 kg diesel counterbalance forklift developed for reliable cargo transfer under intensive working conditions. Its heavy-duty chassis and strengthened lifting frame provide structural stability while carrying, stacking, or positioning substantial loads.
A robust diesel power source maintains consistent traction and hydraulic performance throughout repetitive duty cycles. The load-handling controls allow gradual fork movement and precise mast inclination. A practical driver workspace with broad sightlines and accessible levers contributes to safer, more productive operation.
Usage Scenarios:
Warehouse loading
Factory material circulation
Construction-site supply handling
Seaport freight transfer
Distribution-yard activities
Rough-ground industrial work
Working Mechanism:
The engine powers the transmission that drives the wheels and also operates the hydraulic pump. Fluid under pressure is distributed to the lifting and tilting cylinders according to control input. The steering assembly guides vehicle movement, while the brake system supports stable speed management and safe stopping.
Product Parameters
| Specifications |
Unit |
FD35 |
| 1 |
Characteristics |
Power |
— |
diesel |
| 2 |
Rated Capacity |
kg |
3500 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×125×45 |
| 7 |
Tilt Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2600 |
| 9 |
Min.ground clearance(Mast) |
mm |
120 |
| 10 |
Overhead guard height |
mm |
2170 |
| 11 |
Front overhang |
mm |
545 |
| 12 |
Performance |
Max.traveling speed(loaded) |
km/h |
20 |
| 13 |
Max.lifting speed(loaded/empty) |
mm/s |
470/520 |
| 14 |
Drawback pull/Grade ability |
kN/% |
18/20 |
| 15 |
Dimensions |
Overall length (without fork) |
mm |
2825 |
| 16 |
Overall width |
mm |
1230 |
| 17 |
Mast lowered height |
mm |
2065 |
| 18 |
Mast extended height |
mm |
4260 |
| 19 |
Chassis |
Tire |
Front |
— |
28×9-15-12PR |
| 20 |
Rear |
— |
6.50-10-10PR |
| 21 |
Wheelbase |
mm |
1800 |
| 22 |
Tread width |
Front/Rear |
mm |
1000/970 |
| 23 |
Curb weight |
None-load |
kg |
4250 |
| 24 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
| 25 |
Engine |
Model |
— |
XC490BPG |
| 26 |
Rated power |
kw/r.p.m |
37/2650 |
| 27 |
Rated torque |
Nm/r.p.m |
148/2000 |
| 28 |
Cylinder amount |
— |
4 |
| 29 |
Bore×Stroke |
mm |
90×105 |
| 30 |
|
Displacement |
— |
2.54 |
| 31 |
Fuel tank |
L |
70 |
| 32 |
Transmission |
— |
1/1 automatic transmission |
| 33 |
Working pressure |
MPa |
17.5 |
Description:
(1)Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)USA Eaton steering gear;
(4)LED light, with long durability time;
(5)Copper Water tank, with better heat radiation;
(6)Red/yellow/green colors for your reference.
Common Optionals:
Japan Isuzu/Mitsubishi engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.
Product Pictures
After-sales service
Our Commitment to You:
1. We stand behind the quality of the SNSC FD35 with a comprehensive 12-month warranty.
2. Coupled with our 24/7 online customer support, we ensureyou have the peace of mind and assistance you need, whenever you need it
3. Maintenance consultation and operation training
4. Reliable parts supply to ensure uptime
5. Quick-response parts delivery
6. Lifetime support for operation and maintenance
