Product Name
SNSC FL30 3-Ton Strong Power 3 Ton LPG Gasoline Forklift Dual Fuel Transmission Stable Drive
Product Advantages
The SNSC 3000 kg LPG gasoline forklift is built to deliver stable handling performance in warehouse and industrial environments
A reliable hydraulic system allows smooth lifting cycles, controlled descent, and precise fork positioning
Its reinforced mast and rugged chassis construction contribute to strong durability and dependable service life
The comfortable driving compartment and optimized visibility support safer and more efficient operation
Applicable to warehouse logistics, factory material movement, port handling, freight transfer, and building projects
Protected by a one-year warranty and supported by 24/7 online after-sales assistance
Product Introduction
For demanding industrial and warehouse operations, the SNSC 3 Ton LPG Gasoline Forklift offers a practical and reliable handling solution. A 3000 kg load capacity, heavy-duty chassis, and strengthened mast assembly allow secure lifting and stable day-to-day performance.
Its LPG gasoline engine provides efficient power and dependable working response. The hydraulic system manages lifting, lowering, and tilting actions smoothly, while the operator area is designed to improve comfort, safety, and efficiency during extended use.
Applications:
Warehouses
Factories
Construction zones
Ports
Outdoor material handling
Working Principle:
Power generated by the dual-fuel engine is used to operate the hydraulic pump. This hydraulic pressure controls mast lifting and tilting, while steering and braking systems provide smooth maneuvering and accurate operation.
Product Parameters
| Specifications |
Unit |
FL30 |
| 1 |
Characteristics |
Power |
— |
LPG&GAS |
| 2 |
Rated Capacity |
kg |
3000 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×125×45 |
| 7 |
Tilt Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2600 |
| 9 |
Min.ground clearance(Mast) |
mm |
120 |
| 10 |
Overhead guard height |
mm |
2170 |
| 11 |
Front overhang |
mm |
545 |
| 12 |
Performance |
Max.traveling speed(loaded) |
km/h |
20 |
| 13 |
Max.lifting speed(loaded/empty) |
mm/s |
470/520 |
| 14 |
Drawback pull/Grade ability |
kN/% |
18/20 |
| 15 |
Dimensions |
Overall length (without fork) |
mm |
2825 |
| 16 |
Overall width |
mm |
1230 |
| 17 |
Mast lowered height |
mm |
2065 |
| 18 |
Mast extended height |
mm |
4260 |
| 19 |
Chassis |
Tire |
Front |
— |
28×9-15-12PR |
| 20 |
Rear |
— |
6.50-10-10PR |
| 21 |
Wheelbase |
mm |
1800 |
| 22 |
Tread width |
Front/Rear |
mm |
1000/970 |
| 23 |
Curb weight |
None-load |
kg |
4250 |
| 24 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
| 25 |
Engine |
Model |
— |
XC490BPG |
| 26 |
Rated power |
kw/r.p.m |
37/2650 |
| 27 |
Rated torque |
Nm/r.p.m |
148/2000 |
| 28 |
Cylinder amount |
— |
4 |
| 29 |
Bore×Stroke |
mm |
90×105 |
| 30 |
|
Displacement |
— |
2.54 |
| 31 |
Fuel tank |
L |
70 |
| 32 |
Transmission |
— |
1/1 automatic transmission |
| 33 |
Working pressure |
MPa |
17.5 |
Description:
- Equipped with an auto electric hydraulic transmission based on TCM technology, the forklift allows quick and smooth forward and reverse shifting with simple fingertip control.
- The Japanese hydraulic system, featuring Shimadzu valves and pumps, ensures stable performance, responsive operation, and reliable working efficiency.
- An Eaton steering unit from the USA provides flexible handling, precise steering response, and improved driving comfort.
- The forklift is fitted with LED lighting, offering longer service life, lower energy consumption, and better visibility during operation.
- A copper radiator tank delivers more efficient heat dissipation, helping maintain stable performance during long working hours.
- Multiple color choices are available, including red, yellow, and green, to meet different customer preferences.
Common Optional Configurations:
- Japan Isuzu or Mitsubishi engine
- Side shifter
- Double front tires
- Solid tires
- Double air filter
- Vertical exhaust system
- Fork extensions
- Cabin
- Fork positioner

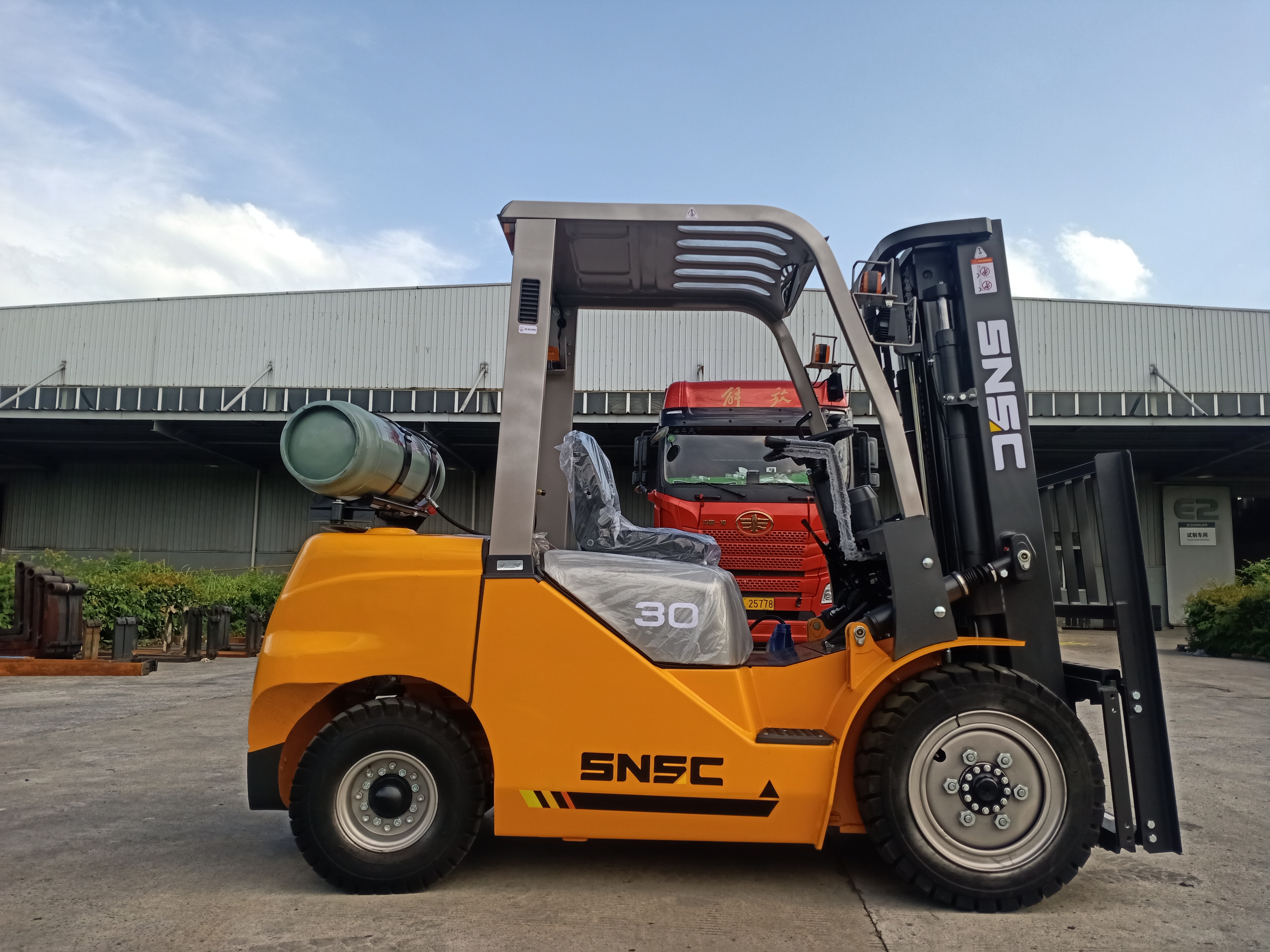

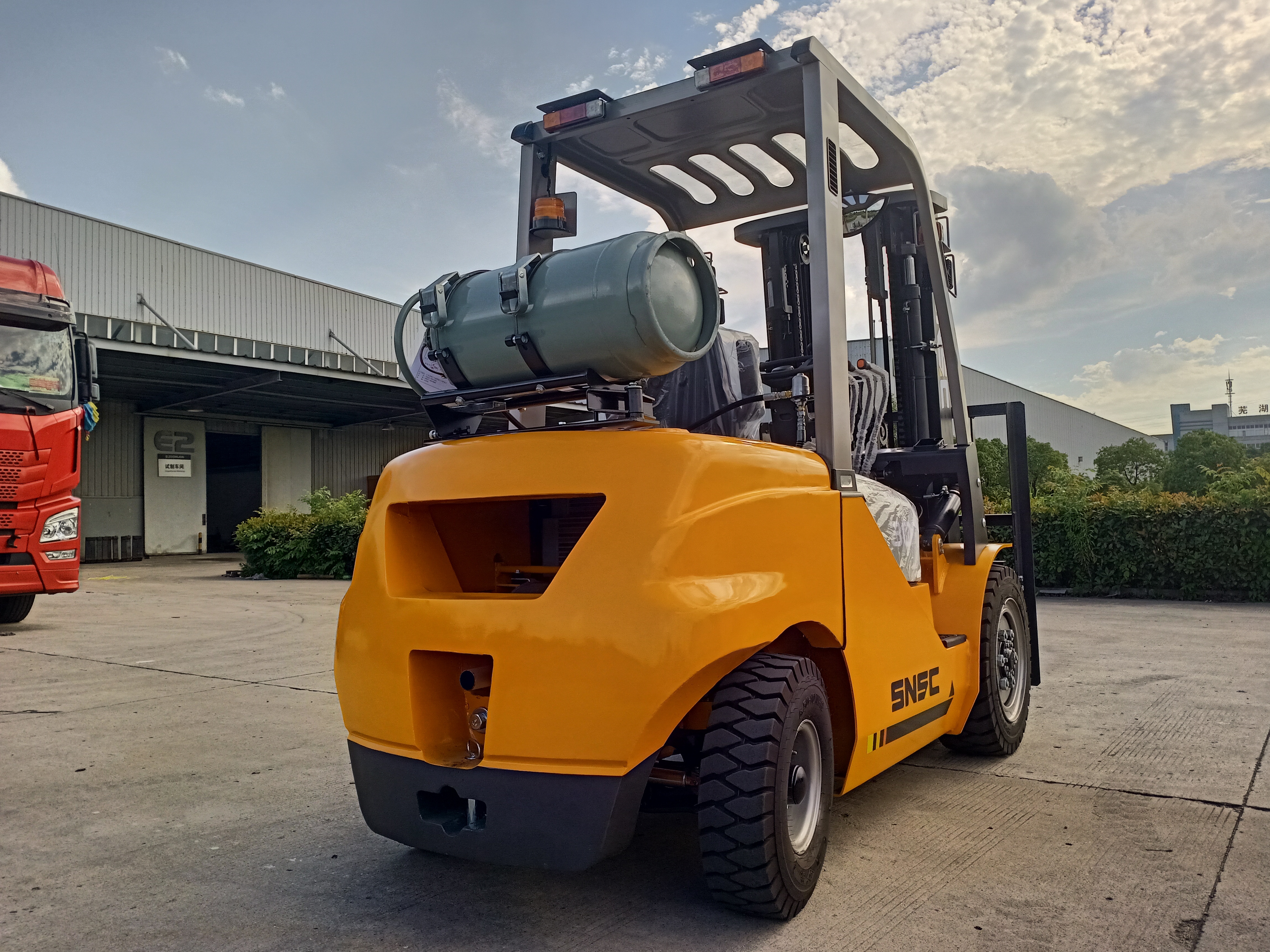

Product Pictures
After-sales service
Our Commitment to You:
- The SNSC FD30 includes a 12-month warranty as standard, offering strong support for long-term use.
- Our 24/7 online support platform ensures immediate communication and dependable service.
- We assist customers with operation training and maintenance consultation to improve equipment efficiency.
- A secure parts supply channel helps keep your forklift in working condition.
- Timely spare parts delivery helps maintain stable workflow and reduce delays.
- We provide lifetime after-sales support covering both operation and maintenance.
