Product Name
SNSC Energy Saving 3 Ton Dual Fuel Forklift Truck LPG Petrol Efficient Operation
Product Advantages
With a rated load of 3000 kg, the SNSC 3 Ton LPG Gasoline Forklift is designed for efficient use in demanding industrial settings
Its hydraulic control technology enables smooth elevation, balanced lowering, and precise load placement
The forklift is built with a sturdy chassis and strengthened mast to deliver reliable performance in intensive operations
A comfortable cabin layout and clear mast sightlines help improve control, reduce fatigue, and increase productivity
Suitable for warehouses, workshops, ports, logistics hubs, and various outdoor handling tasks
Includes a 12-month warranty package along with dependable 24/7 service support
Product Introduction
The SNSC 3 Ton LPG Gasoline Forklift is engineered to perform effectively in warehousing, logistics, and industrial environments where stable handling is essential. With its 3000 kg rated load, reinforced frame, and durable mast system, it supports secure lifting and reliable operation.
Its efficient LPG gasoline engine ensures steady power delivery and productive performance. The hydraulic arrangement enables precise lifting, smooth lowering, and controlled mast tilting, while the driver compartment helps improve visibility, comfort, and operational efficiency.
Applications:
Storage facilities
Manufacturing workshops
Construction areas
Cargo terminals
Outdoor heavy-duty transport
Working Principle:
The engine powers the hydraulic pump to generate pressure for lifting and tilting functions. Working together with the steering and braking systems, the forklift achieves accurate control and safe movement under load.
Product Parameters
| Specifications |
Unit |
FL30 |
| 1 |
Characteristics |
Power |
— |
LPG&GAS |
| 2 |
Rated Capacity |
kg |
3000 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×125×45 |
| 7 |
Tilt Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2600 |
| 9 |
Min.ground clearance(Mast) |
mm |
120 |
| 10 |
Overhead guard height |
mm |
2170 |
| 11 |
Front overhang |
mm |
545 |
| 12 |
Performance |
Max.traveling speed(loaded) |
km/h |
20 |
| 13 |
Max.lifting speed(loaded/empty) |
mm/s |
470/520 |
| 14 |
Drawback pull/Grade ability |
kN/% |
18/20 |
| 15 |
Dimensions |
Overall length (without fork) |
mm |
2825 |
| 16 |
Overall width |
mm |
1230 |
| 17 |
Mast lowered height |
mm |
2065 |
| 18 |
Mast extended height |
mm |
4260 |
| 19 |
Chassis |
Tire |
Front |
— |
28×9-15-12PR |
| 20 |
Rear |
— |
6.50-10-10PR |
| 21 |
Wheelbase |
mm |
1800 |
| 22 |
Tread width |
Front/Rear |
mm |
1000/970 |
| 23 |
Curb weight |
None-load |
kg |
4250 |
| 24 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
| 25 |
Engine |
Model |
— |
XC490BPG |
| 26 |
Rated power |
kw/r.p.m |
37/2650 |
| 27 |
Rated torque |
Nm/r.p.m |
148/2000 |
| 28 |
Cylinder amount |
— |
4 |
| 29 |
Bore×Stroke |
mm |
90×105 |
| 30 |
|
Displacement |
— |
2.54 |
| 31 |
Fuel tank |
L |
70 |
| 32 |
Transmission |
— |
1/1 automatic transmission |
| 33 |
Working pressure |
MPa |
17.5 |
Description:
- Equipped with an auto electric hydraulic transmission based on TCM technology, the forklift allows quick and smooth forward and reverse shifting with simple fingertip control.
- The Japanese hydraulic system, featuring Shimadzu valves and pumps, ensures stable performance, responsive operation, and reliable working efficiency.
- An Eaton steering unit from the USA provides flexible handling, precise steering response, and improved driving comfort.
- The forklift is fitted with LED lighting, offering longer service life, lower energy consumption, and better visibility during operation.
- A copper radiator tank delivers more efficient heat dissipation, helping maintain stable performance during long working hours.
- Multiple color choices are available, including red, yellow, and green, to meet different customer preferences.
Common Optional Configurations:
- Japan Isuzu or Mitsubishi engine
- Side shifter
- Double front tires
- Solid tires
- Double air filter
- Vertical exhaust system
- Fork extensions
- Cabin
- Fork positioner

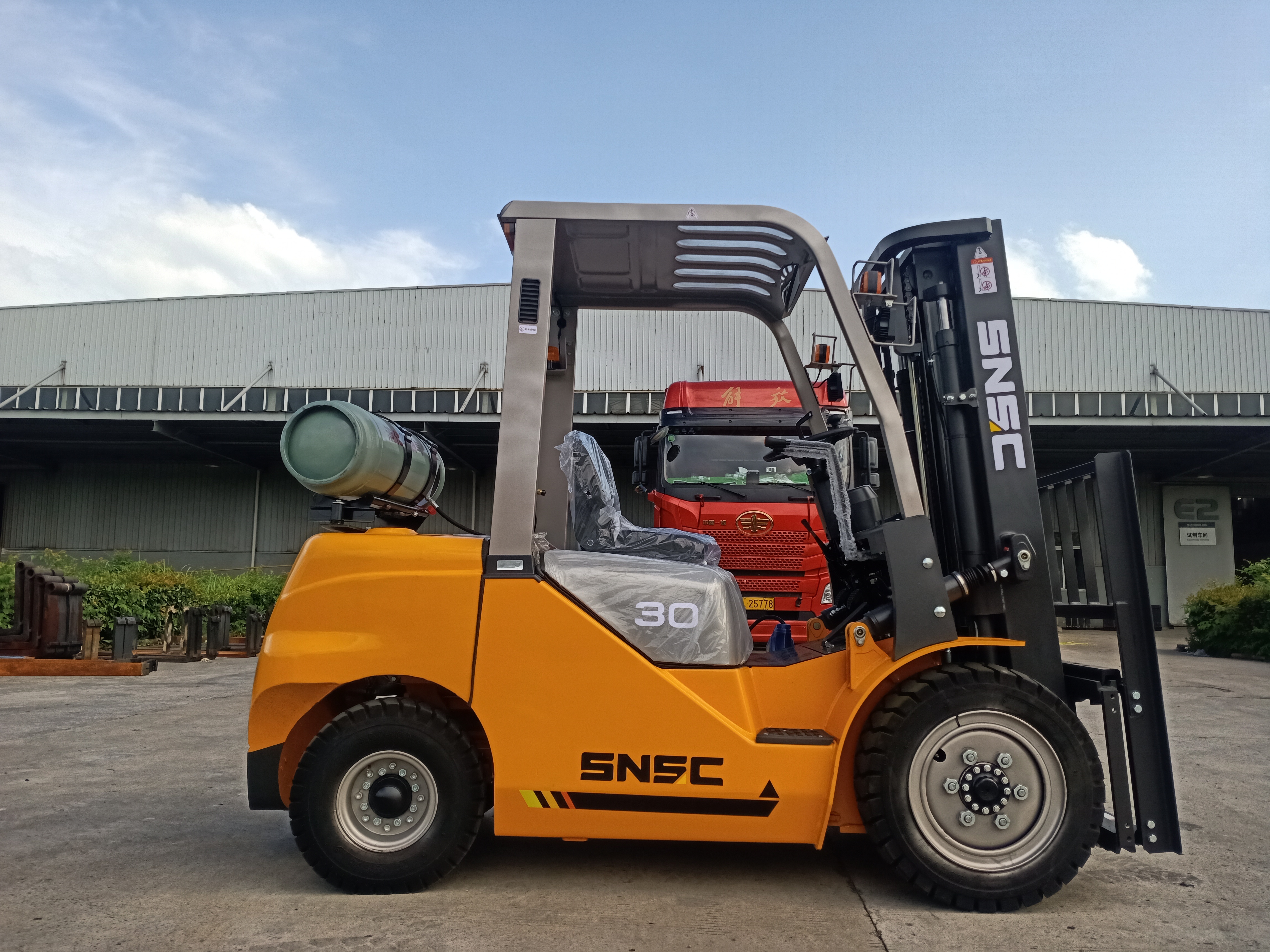

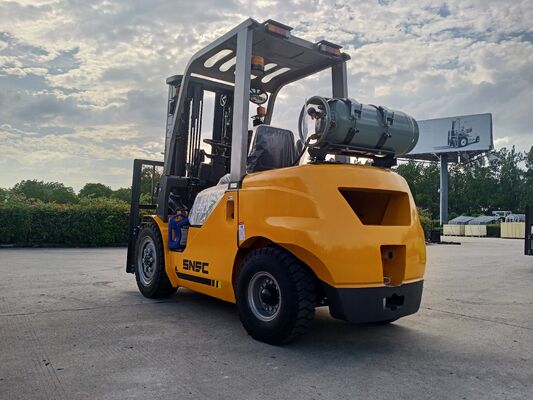

Product Pictures
After-sales service
Our Commitment to You:
1. We stand behind the quality of the SNSC FD30 with a comprehensive 12-month warranty.
2. Coupled with our 24/7 online customer support, we ensureyou have the peace of mind and assistance you need, whenever you need it
3. Maintenance consultation and operation training
4. Reliable parts supply to ensure uptime
5. Quick-response parts delivery
6. Lifetime support for operation and maintenance
