Product Name
Fuel Saving 3000kg Dual Fuel Forklift LPG Gas Petrol Easy Maintenance Design
Product Advantages
The SNSC 3 Ton Dual Fuel Forklift is built for reliable handling of loads up to 3000 kg in demanding working conditions
Its precision hydraulic system ensures smooth lifting action, controlled lowering, and responsive fork movement
A solid frame structure together with a strengthened mast provides excellent durability and long-term stability
The ergonomic driving area and wide-view mast design help improve visibility, comfort, and daily operating efficiency
Suitable for storage facilities, production workshops, freight terminals, distribution yards, and construction projects
Covered by a 12-month warranty and supported by 24-hour online after-sales service
Product Introduction
The SNSC 3 Ton LPG Gasoline Forklift is developed for intensive material-handling work in industrial plants, storage facilities, and logistics environments. With a 3000 kg rated capacity, reinforced frame, and durable mast assembly, it provides reliable lifting stability and secure daily operation.
Equipped with an efficient LPG gasoline power unit, the forklift delivers steady output and responsive performance. Its hydraulic mechanism supports smooth lifting, lowering, and mast tilting, while the operator area is designed to improve comfort, visibility, and working efficiency during long shifts.
Applications:
Warehouses
Factories
Construction sites
Ports and freight terminals
Heavy-duty outdoor handling
Working Principle:
The LPG gasoline engine powers the hydraulic pump, creating pressure to operate the mast lifting and tilting functions. Together with the steering and braking systems, the forklift ensures stable control, smooth movement, and safe load handling.
Product Parameters
| Specifications |
Unit |
FL30 |
| 1 |
Characteristics |
Power |
— |
LPG&GAS |
| 2 |
Rated Capacity |
kg |
3000 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×125×45 |
| 7 |
Tilt Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2600 |
| 9 |
Min.ground clearance(Mast) |
mm |
120 |
| 10 |
Overhead guard height |
mm |
2170 |
| 11 |
Front overhang |
mm |
545 |
| 12 |
Performance |
Max.traveling speed(loaded) |
km/h |
20 |
| 13 |
Max.lifting speed(loaded/empty) |
mm/s |
470/520 |
| 14 |
Drawback pull/Grade ability |
kN/% |
18/20 |
| 15 |
Dimensions |
Overall length (without fork) |
mm |
2825 |
| 16 |
Overall width |
mm |
1230 |
| 17 |
Mast lowered height |
mm |
2065 |
| 18 |
Mast extended height |
mm |
4260 |
| 19 |
Chassis |
Tire |
Front |
— |
28×9-15-12PR |
| 20 |
Rear |
— |
6.50-10-10PR |
| 21 |
Wheelbase |
mm |
1800 |
| 22 |
Tread width |
Front/Rear |
mm |
1000/970 |
| 23 |
Curb weight |
None-load |
kg |
4250 |
| 24 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
| 25 |
Engine |
Model |
— |
XC490BPG |
| 26 |
Rated power |
kw/r.p.m |
37/2650 |
| 27 |
Rated torque |
Nm/r.p.m |
148/2000 |
| 28 |
Cylinder amount |
— |
4 |
| 29 |
Bore×Stroke |
mm |
90×105 |
| 30 |
|
Displacement |
— |
2.54 |
| 31 |
Fuel tank |
L |
70 |
| 32 |
Transmission |
— |
1/1 automatic transmission |
| 33 |
Working pressure |
MPa |
17.5 |
Description:
- Equipped with an auto electric hydraulic transmission based on TCM technology, the forklift allows quick and smooth forward and reverse shifting with simple fingertip control.
- The Japanese hydraulic system, featuring Shimadzu valves and pumps, ensures stable performance, responsive operation, and reliable working efficiency.
- An Eaton steering unit from the USA provides flexible handling, precise steering response, and improved driving comfort.
- The forklift is fitted with LED lighting, offering longer service life, lower energy consumption, and better visibility during operation.
- A copper radiator tank delivers more efficient heat dissipation, helping maintain stable performance during long working hours.
- Multiple color choices are available, including red, yellow, and green, to meet different customer preferences.
Common Optional Configurations:
- Japan Isuzu or Mitsubishi engine
- Side shifter
- Double front tires
- Solid tires
- Double air filter
- Vertical exhaust system
- Fork extensions
- Cabin
- Fork positioner

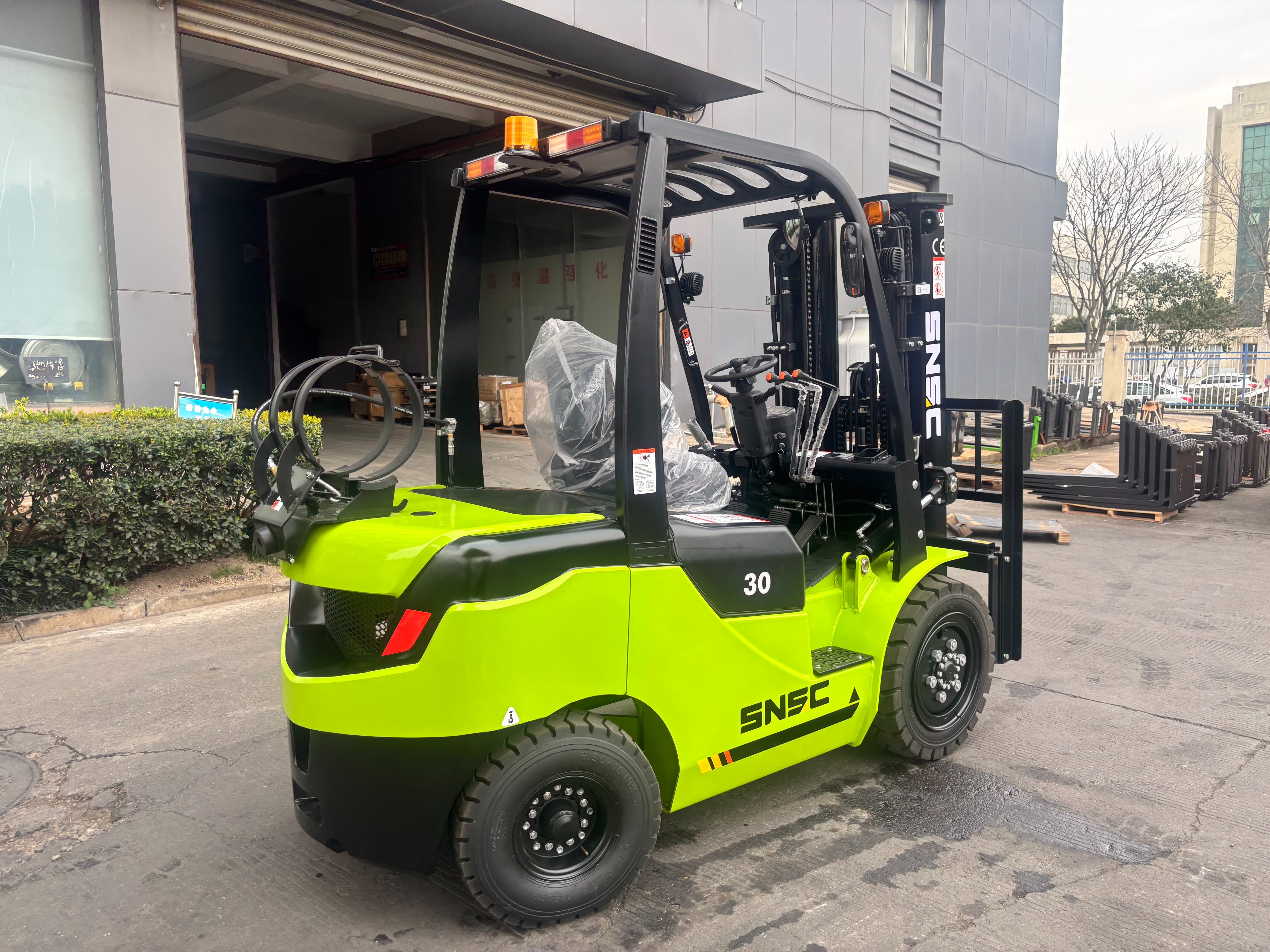

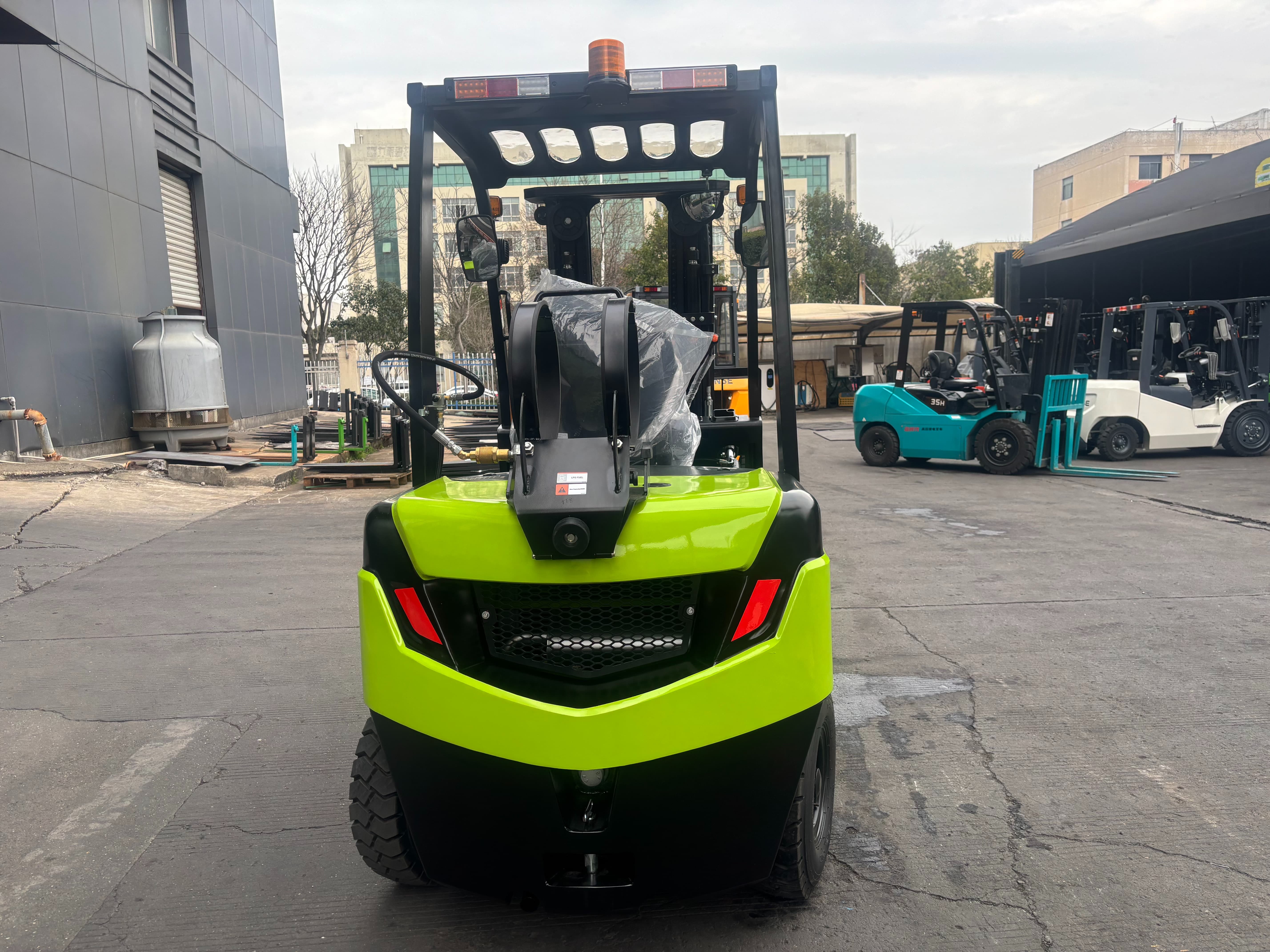

Product Pictures
After-sales service
Our Commitment to You:
- Every SNSC FL30 is supported by a 12-month comprehensive warranty to ensure dependable quality and reliable performance.
- Our 24/7 online customer service is always available to provide timely assistance whenever required.
- We offer maintenance consultation and operation training to help users improve efficiency and equipment care.
- A stable spare parts supply system helps maintain continuous operation and reduce downtime.
- Quick-response parts delivery ensures replacement needs are handled without delay.
- We also provide lifetime support for operation and maintenance throughout the product’s service life.
