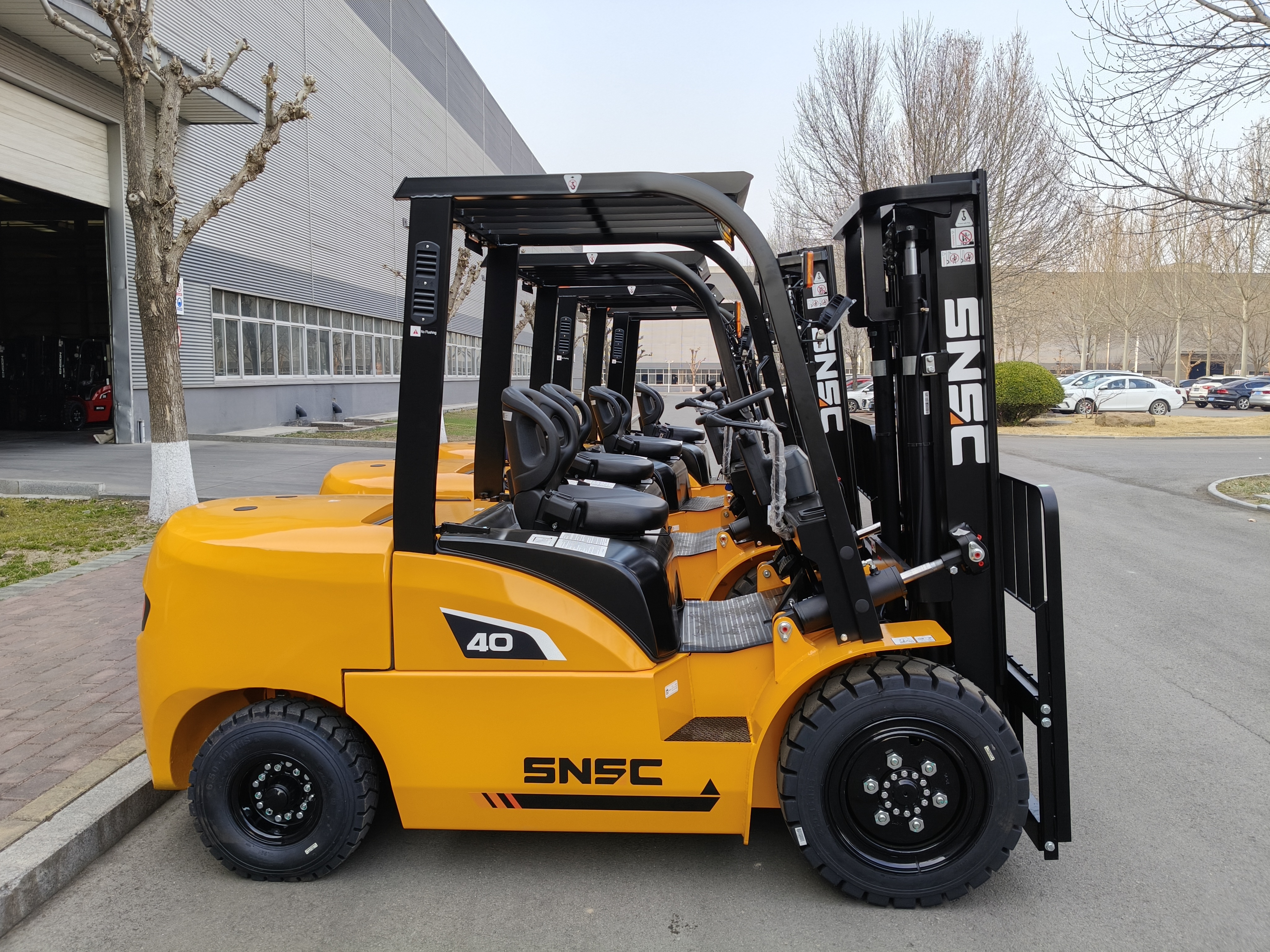

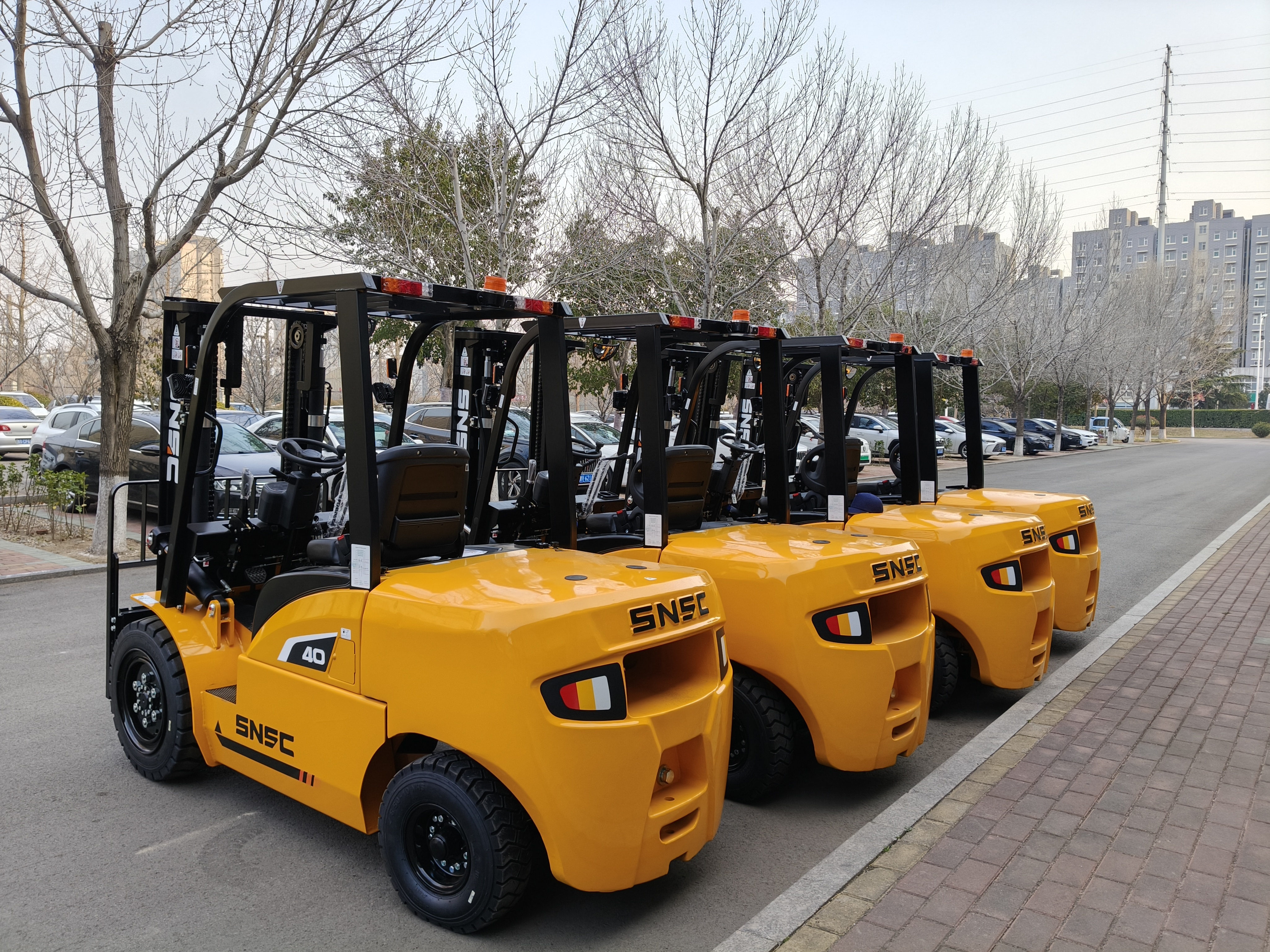

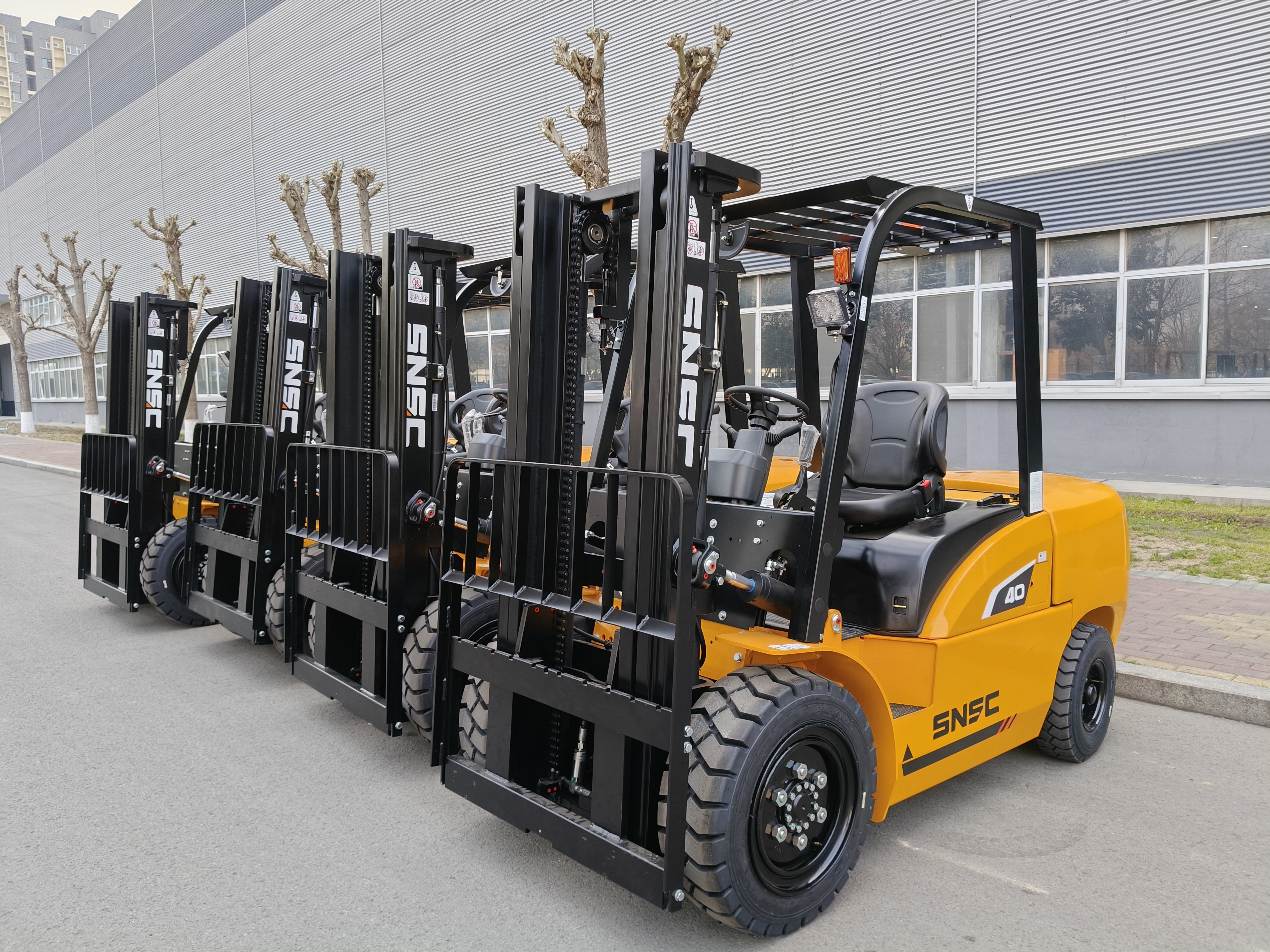

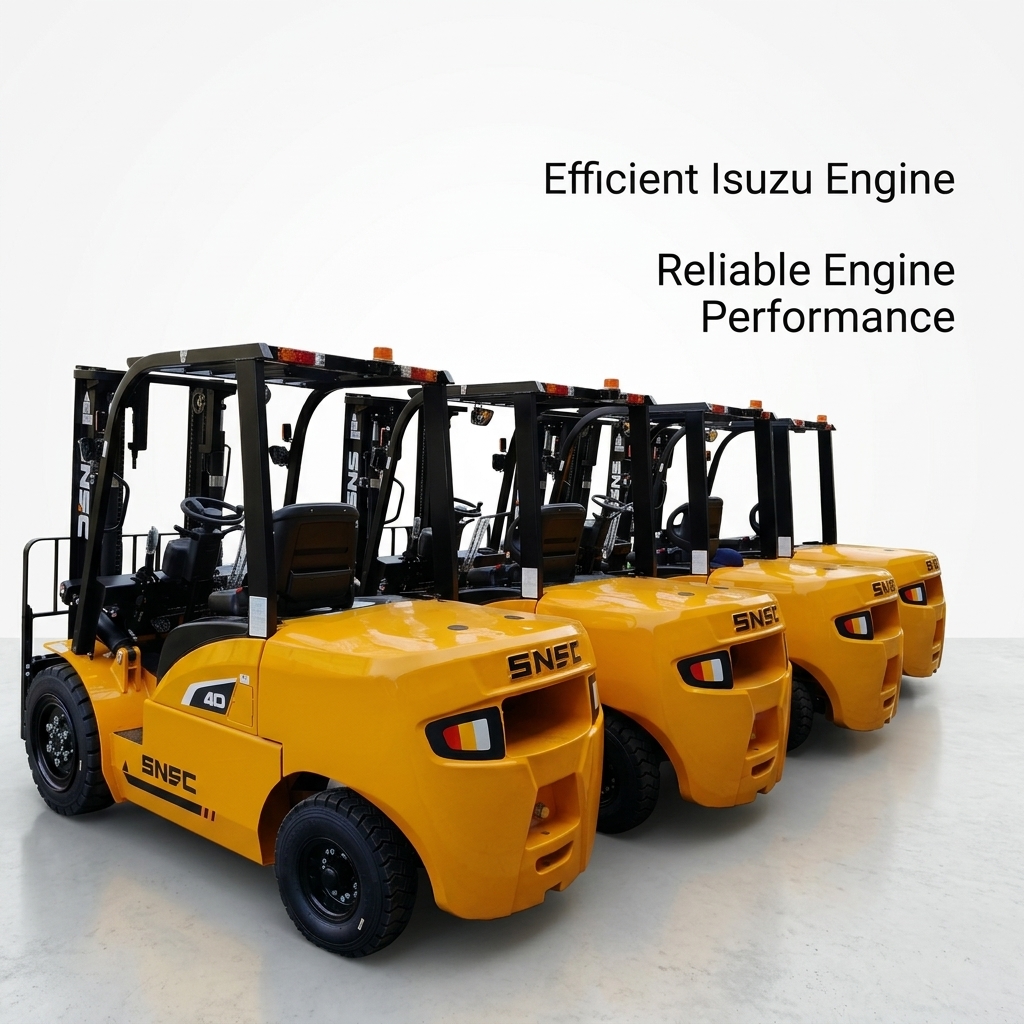

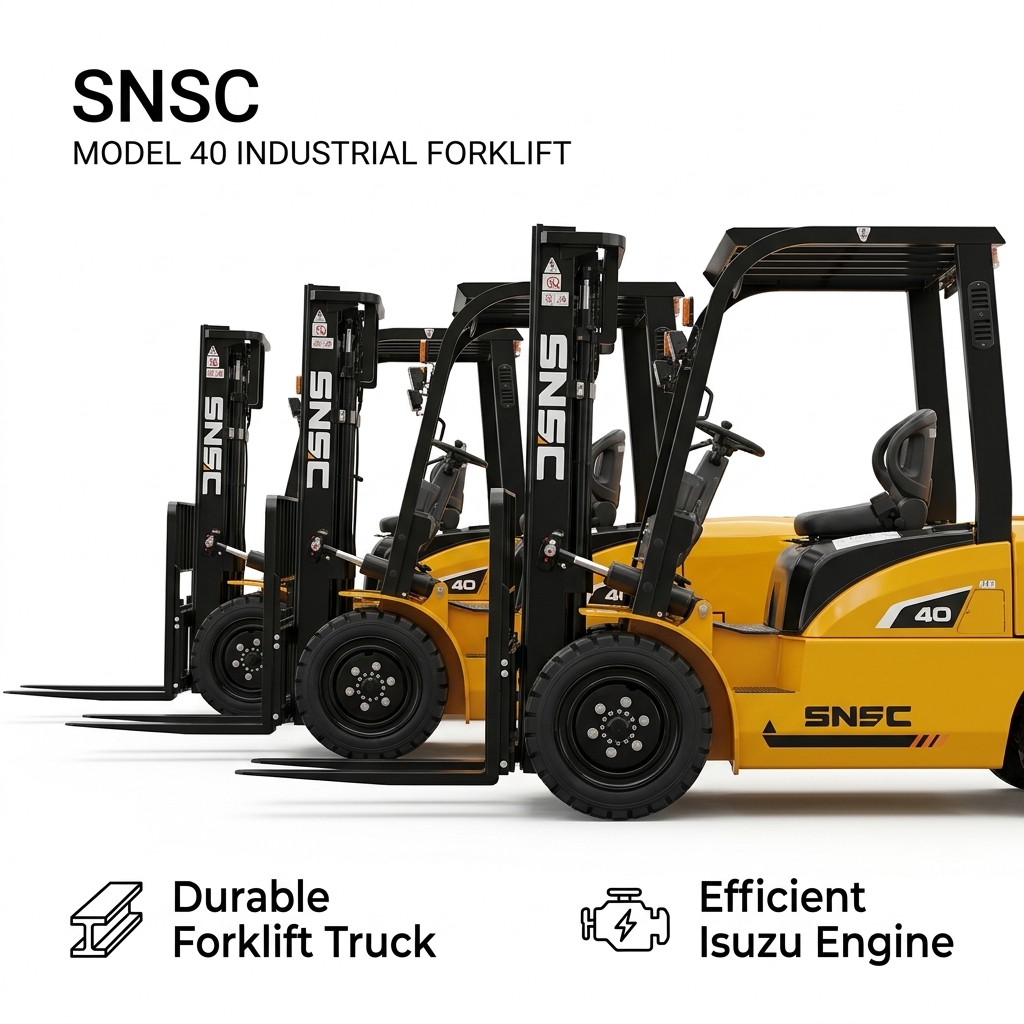

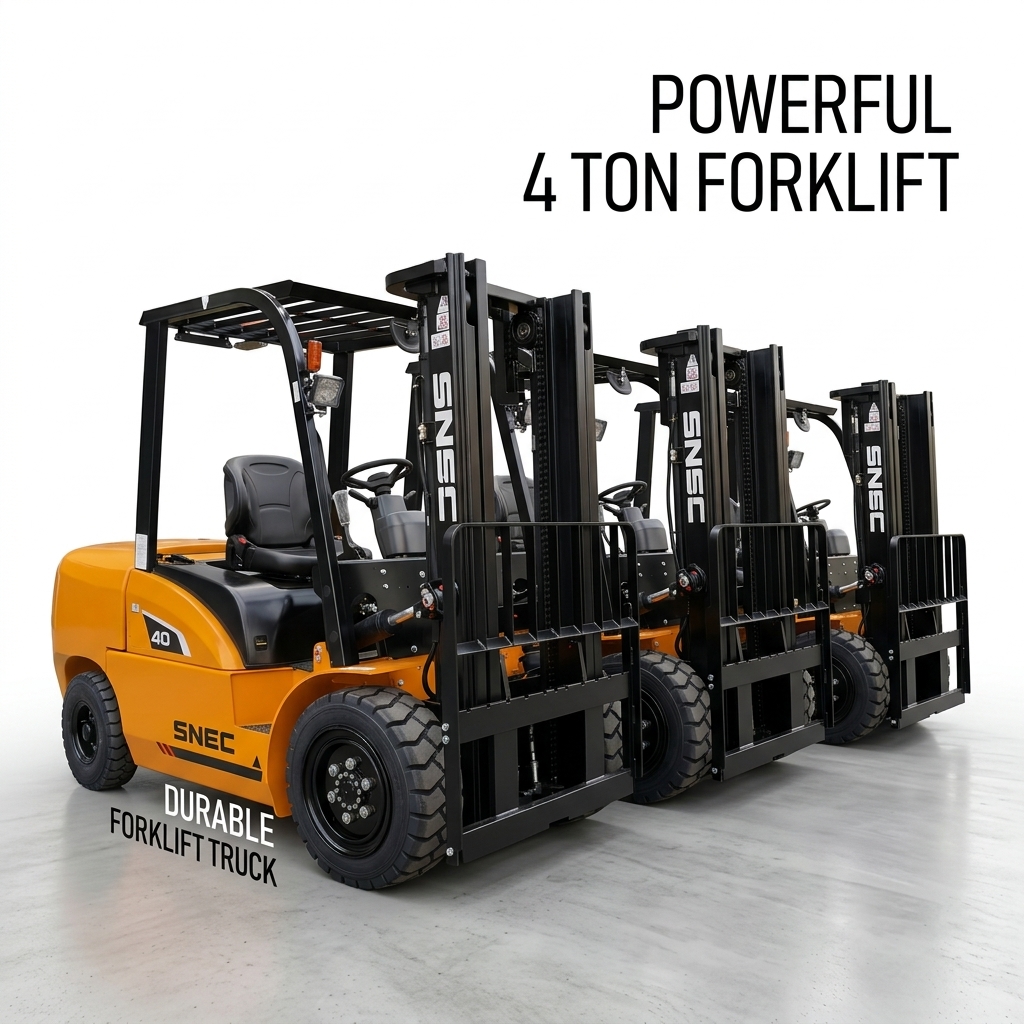

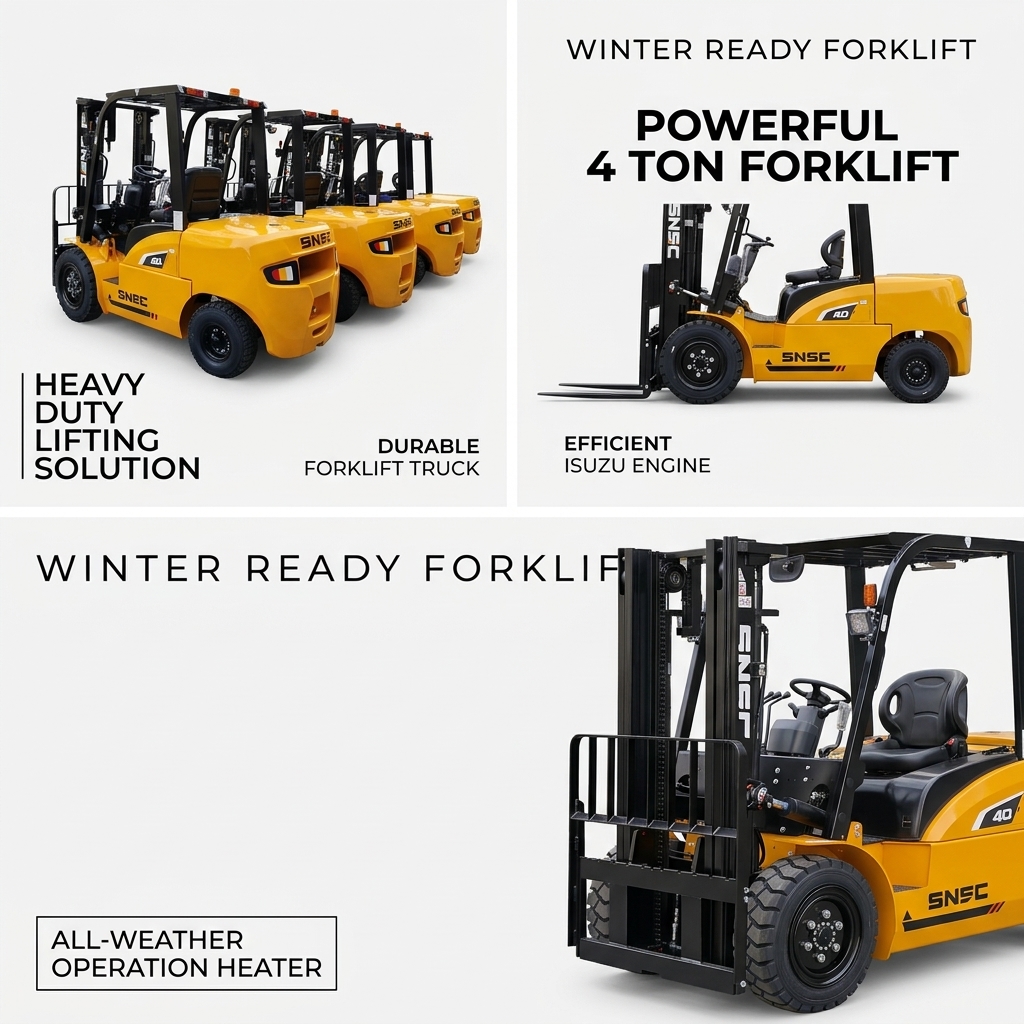

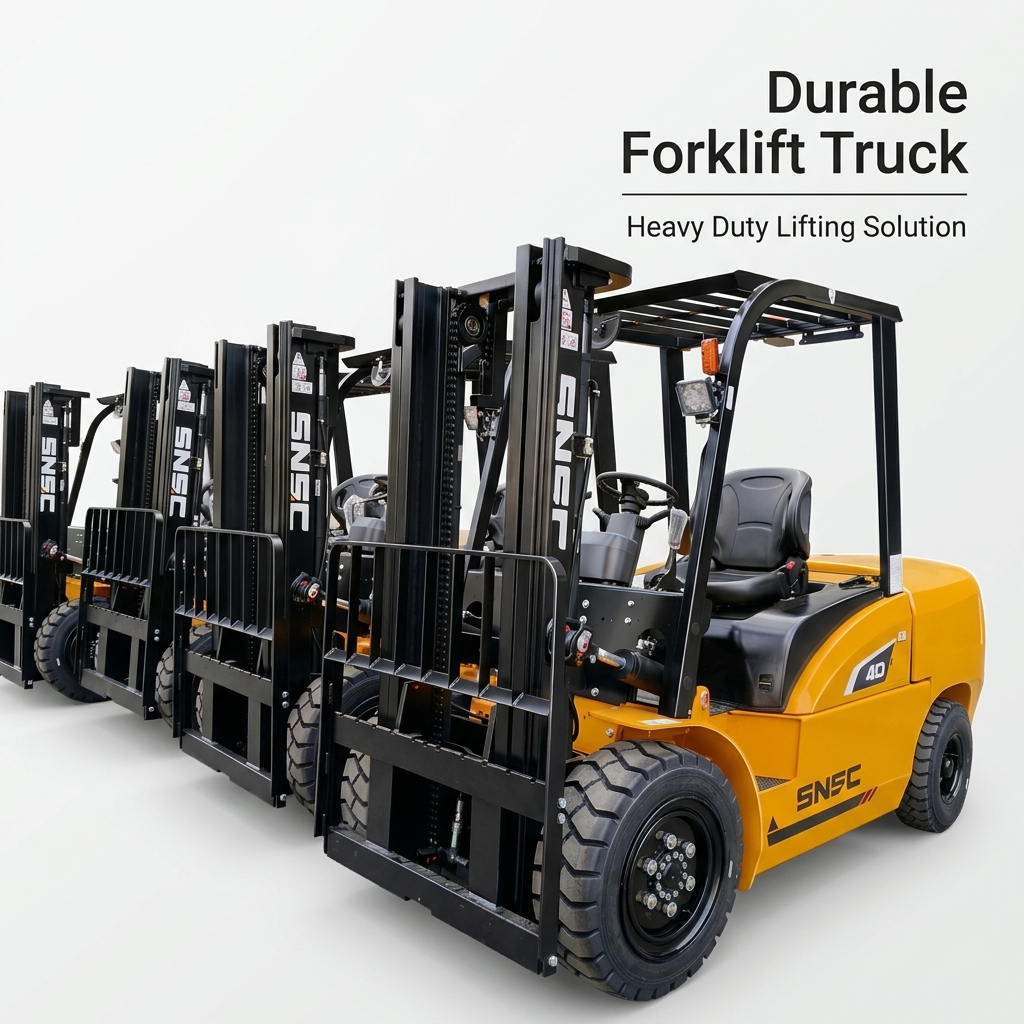

4.0 Ton Diesel Forklift featuring advanced engineering and premium components for industrial material handling applications.
| No. | Specifications | Unit | FD40 |
|---|---|---|---|
| 1 | Characteristics Power | diesel | |
| 2 | Rated capacity | kg | 4000 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 85 |
| 6 | Forks LxWxH | mm | 1070x125x50 |
| 7 | Tilt forward/backward | ° | 6/12 |
| 8 | Min. turning radius | mm | 2700 |
| 9 | Min. ground clearance(Mast) | mm | 120 |
| 10 | Overhead guard height | mm | 2090 |
| 11 | Height from seat to overhead guard | mm | 1005 |
| 12 | Front overhang | mm | 500 |
| 13 | Performance Max. traveling speed(loaded) | Km/h | 19.5 |
| 14 | Max. lifting speed(loaded/empty) | mm/s | 415/440 |
| 15 | Drawbar pull/Gradeability | kN/% | 20/20 |
| 16 | Dimensions Overall length(without fork) | mm | 2930 |
| 17 | Overall width | mm | 1410 |
| 18 | Mast lowered height | mm | 2155 |
| 19 | Mast extended height | mm | 4275 |
| 20 | Chassis Tire Front | 250-15-160PR | |
| 21 | Rear | 6.50-10-10PR | |
| 22 | Wheelbase | mm | 1900 |
| 23 | Tread width Front/Rear | mm | 1160/1065 |
| 24 | Curb weight None-load | kg | 5300 |
| 25 | Powertrain Battery Voltage/Capacity | V/Ah | 12/90 |
| 26 | Engine Model | XC498BPG | |
| 27 | Rated Power | Kw/r.p.m | 45/2500 |
| 28 | Rated torque | Nm/r.p.m | 193/1600-1800 |
| 29 | Cylinder amount | 4 | |
| 30 | BorexStroke | mm | 98X105 |
| 31 | Displacement | 3.168 | |
| 32 | Fuel tank | L | 80 |
| 33 | Transmission | 1/1 Automatic transmission | |
| 34 | Working pressure | Mpa | 17.5 |
Package: We combined Triangle iron Wedge with Flexible packing tape to fix the forklift, attachments, and accessories carton case in the 20' GP or 40' GP.
Shipping: For 3.0-3.5T forklift, 1*20'GP - 2 Units, 1*40'GP - 4 Units
Free Spare Parts With Delivery (valued more than $100 USD): To guarantee optimal forklift performance and extended service life, we include essential spare parts with every delivery, including filters, seals, and related components.
24-Hour Before & After Sales Service: Our technical support team provides prompt responses within 24 hours for all spare parts inquiries and technical support needs, ensuring continuous operational efficiency.
SNSC is a premier quality forklift manufacturer in China, operating from a 130,000 square meter production facility with an annual production capacity of 30,000 units and export volume of 5,000 sets.
We uphold "Quality product, reasonable price, efficient production time and good after-sale service" as our core principles.
We welcome cooperation with customers worldwide for mutual development and benefit. Contact us with your specific requirements.
