Name: Heavy Load Diesel Forklift 5 Ton For Industrial Applications
Brand: Jinan Shine International Trade Co., Ltd.
SKU: FD50
Price: 12,500.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Year,2 Years,1year Guarantee,1 Year Or 1500 Running Hours,three Years

Stroke: 4 Stroke,2 Stroke,210mm

Condition: New

Cylinder: Multi-cylinder,Single Cylinder,4 Cylinder

Weight: 280KG,26kg,28,200~350KG,260kgs

Dimension(l*w*h): 400*325*340mm,88*56*67cm,950x600x988mm,335x380x415,920*600*930 Mm

After-sales Service Provided: Engineers Available To Service Machinery Overseas,No Overseas Service Provided,Overseas Service Center Available,Overseas Third-party Support Available

Cold Style: Water-cooled,ELECTRIC MOTOR,AIR MOTOR

Fuel: Diesel,water,Gasoline

Usage: Automobile,Boat,Excavator,Other,Generator

Color: Blue,gray,Green Or Customized,As Customers' Requirement,yellow

Rated Power: 50kw,140 KW/2000rpm,20-76kw,114-235KW,26kw

Brand: SNSC

Engine: Isuzu ,Mitsubishi ,Cummins

Highlight:

5 ton diesel forklift

heavy load diesel forklift

industrial diesel engine forklift

Basic Infomation

Place of Origin: CHINA

Brand Name: SNSC

Certification: CE

Model Number: FD50

Payment & Shipping Terms

Packaging Details: 3Set / 20GP

Delivery Time: 15-40 work days

Payment Terms: T/T,D/P,D/A,L/C,Western Union,MoneyGram

Supply Ability: 100 set per month

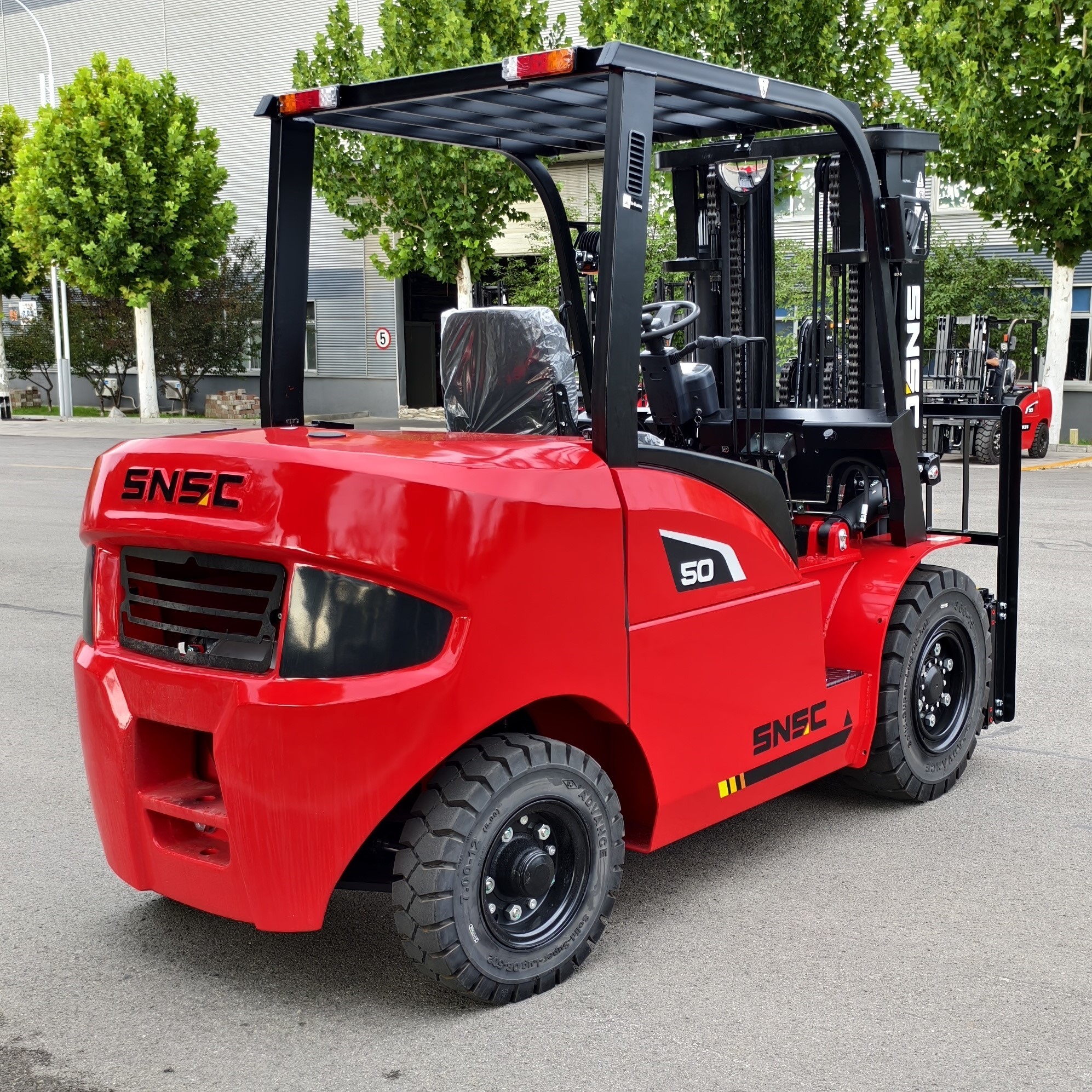

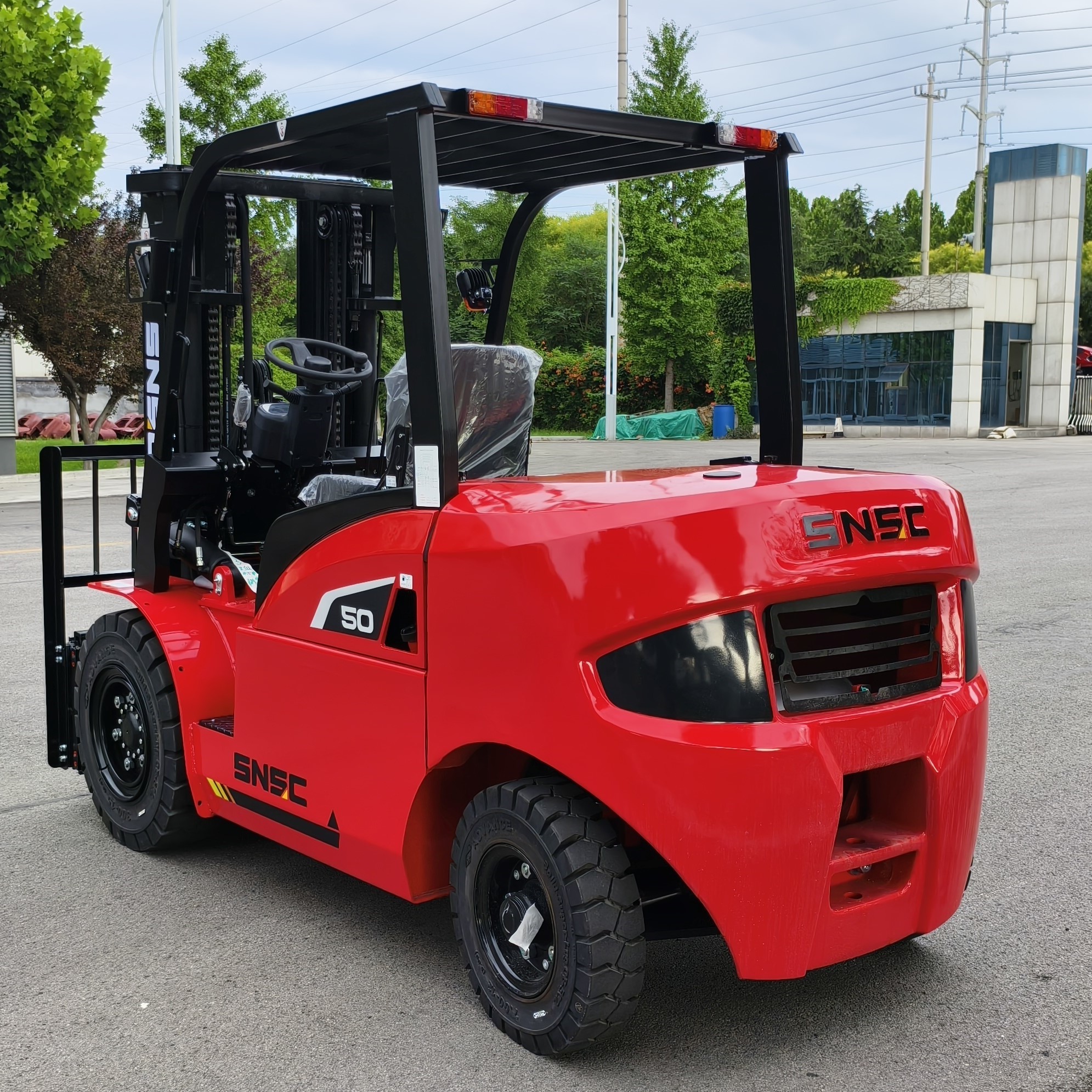

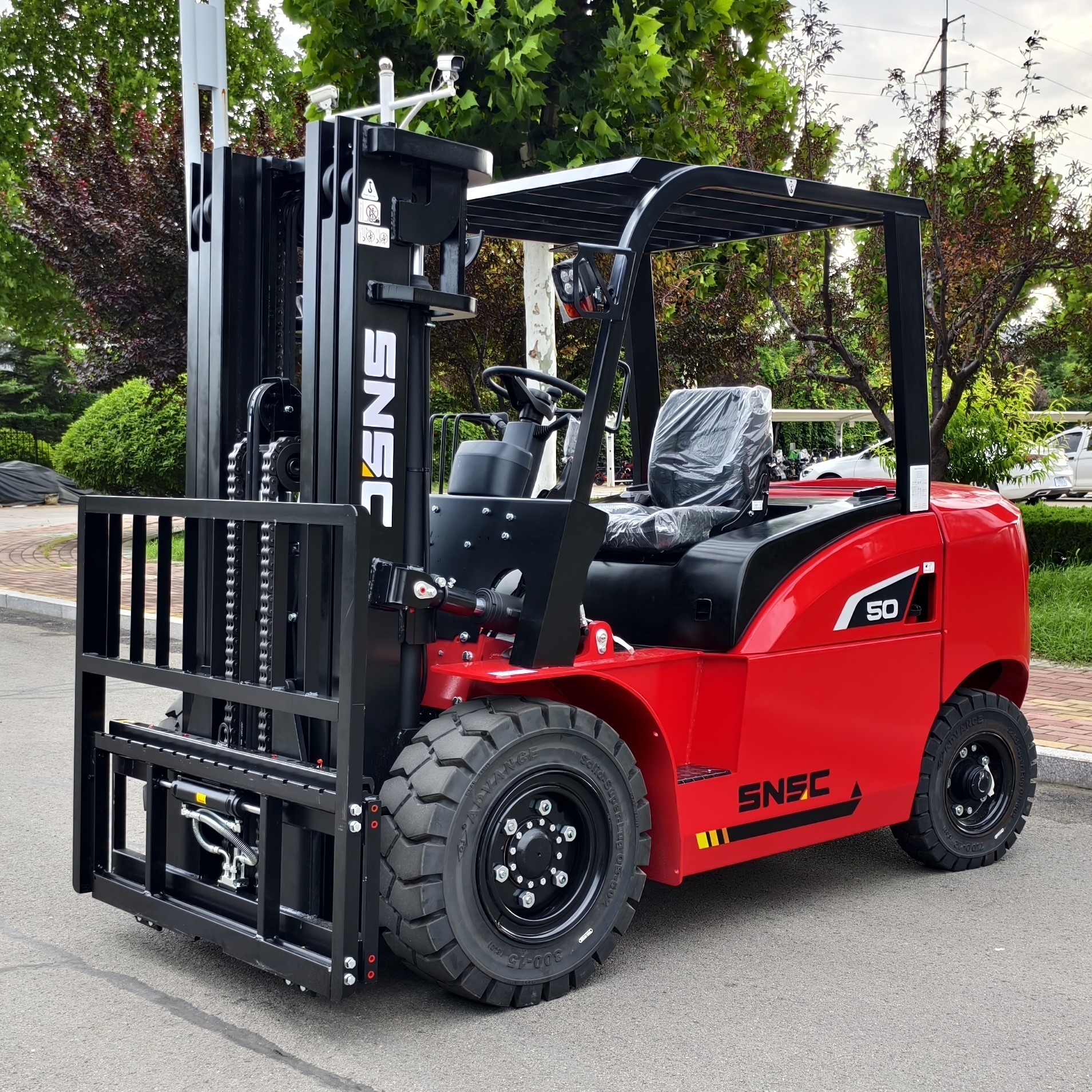

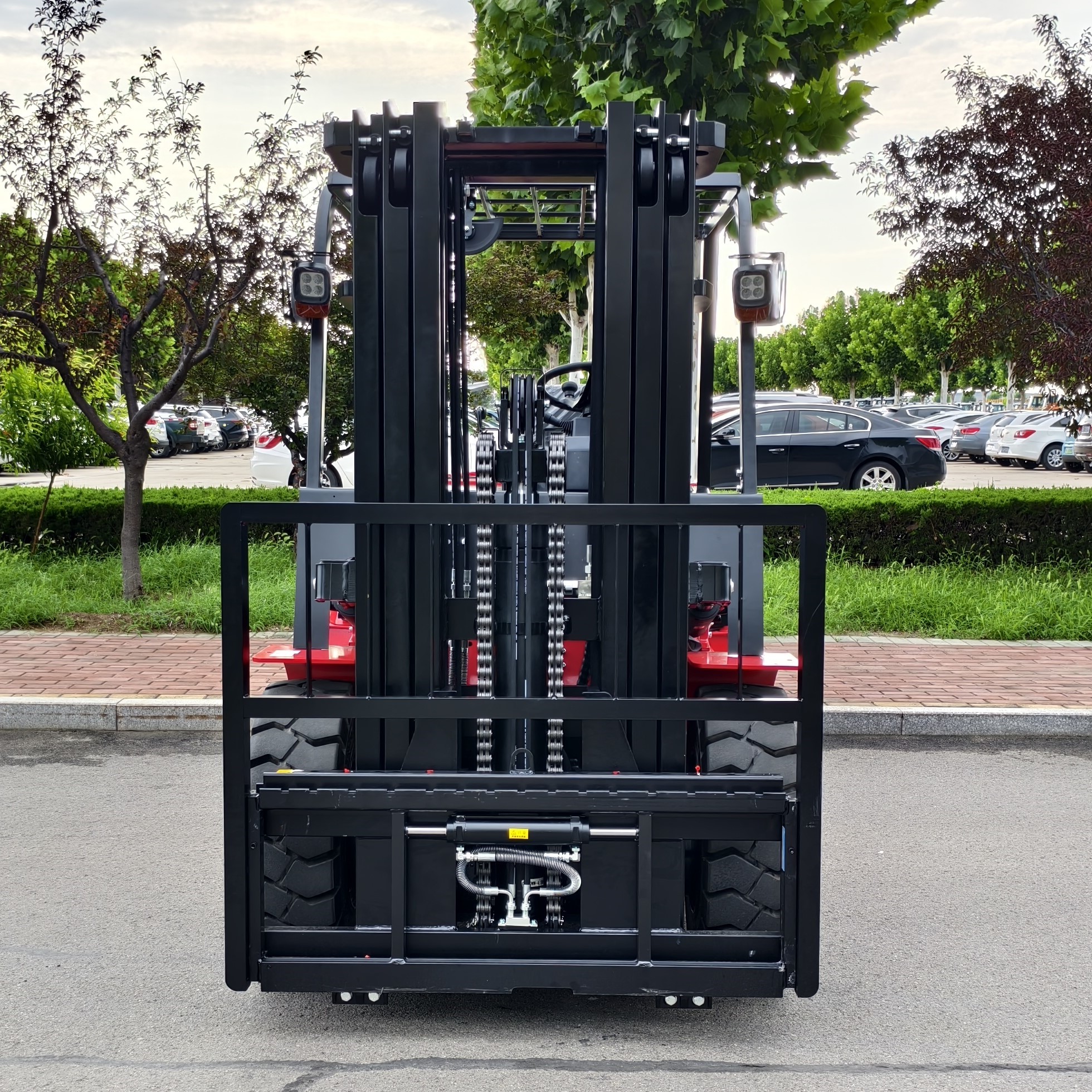

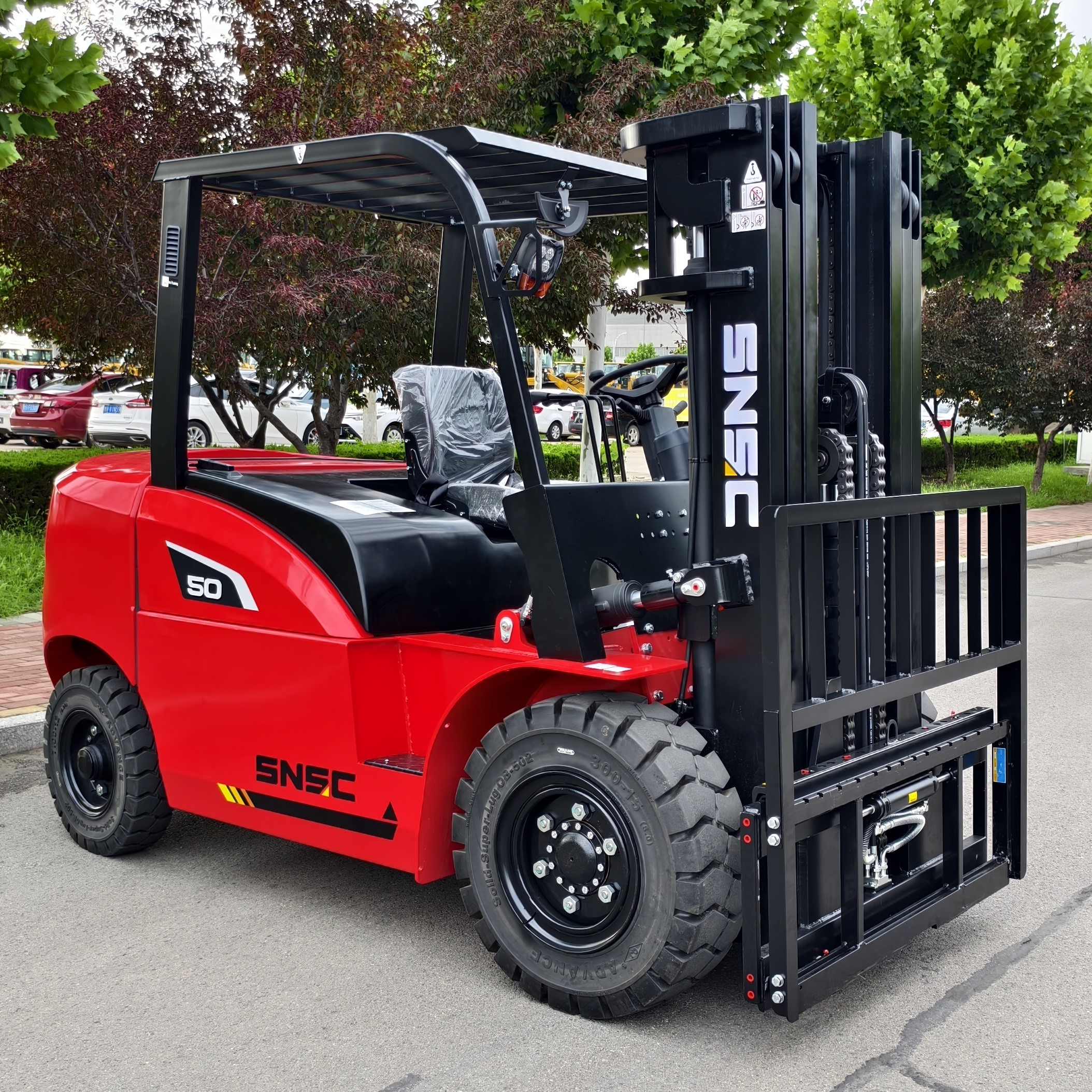

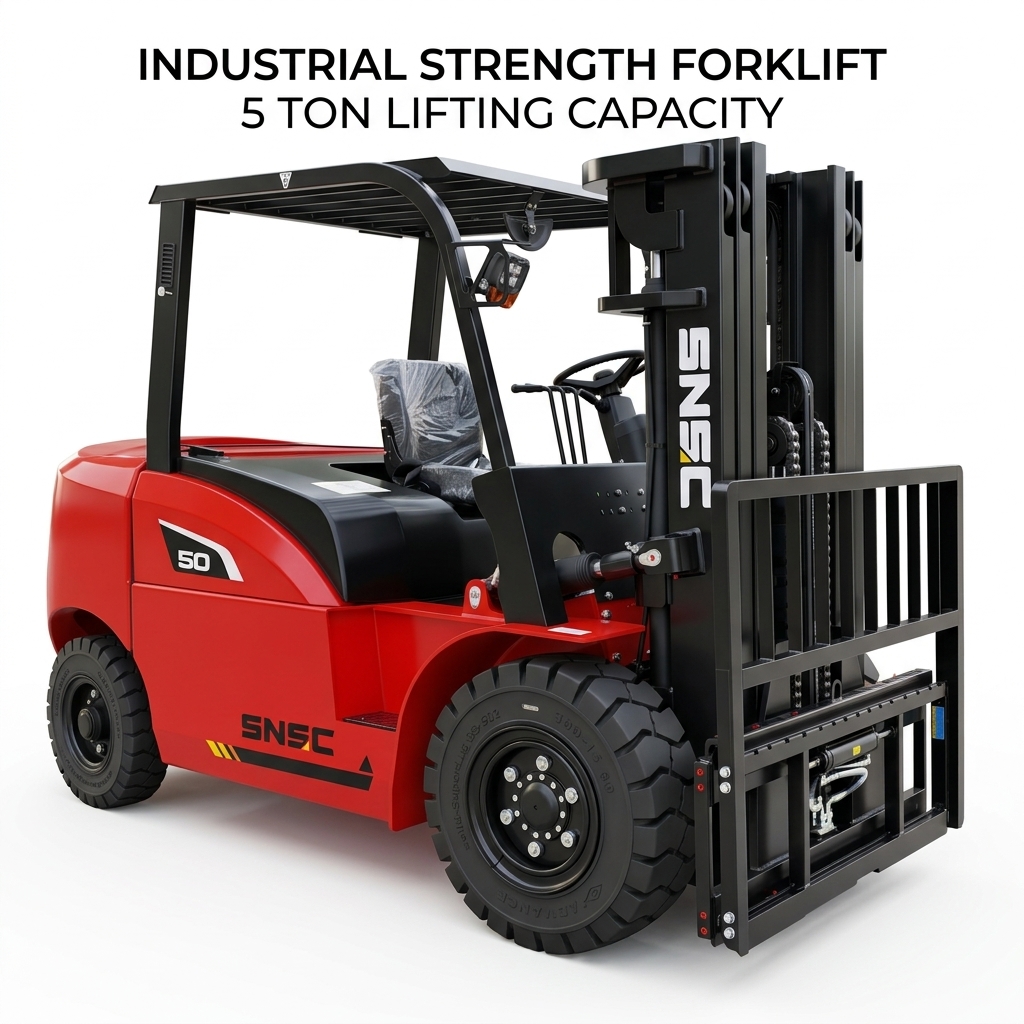

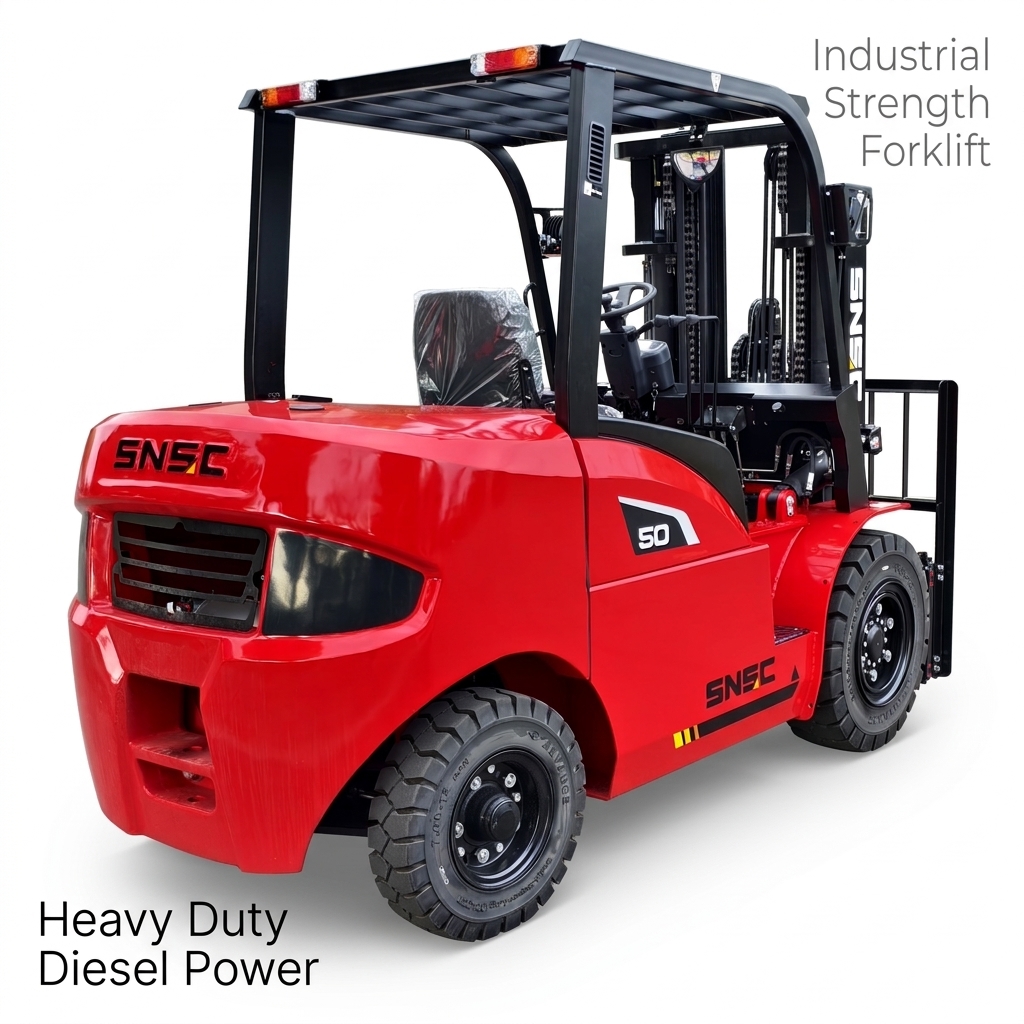

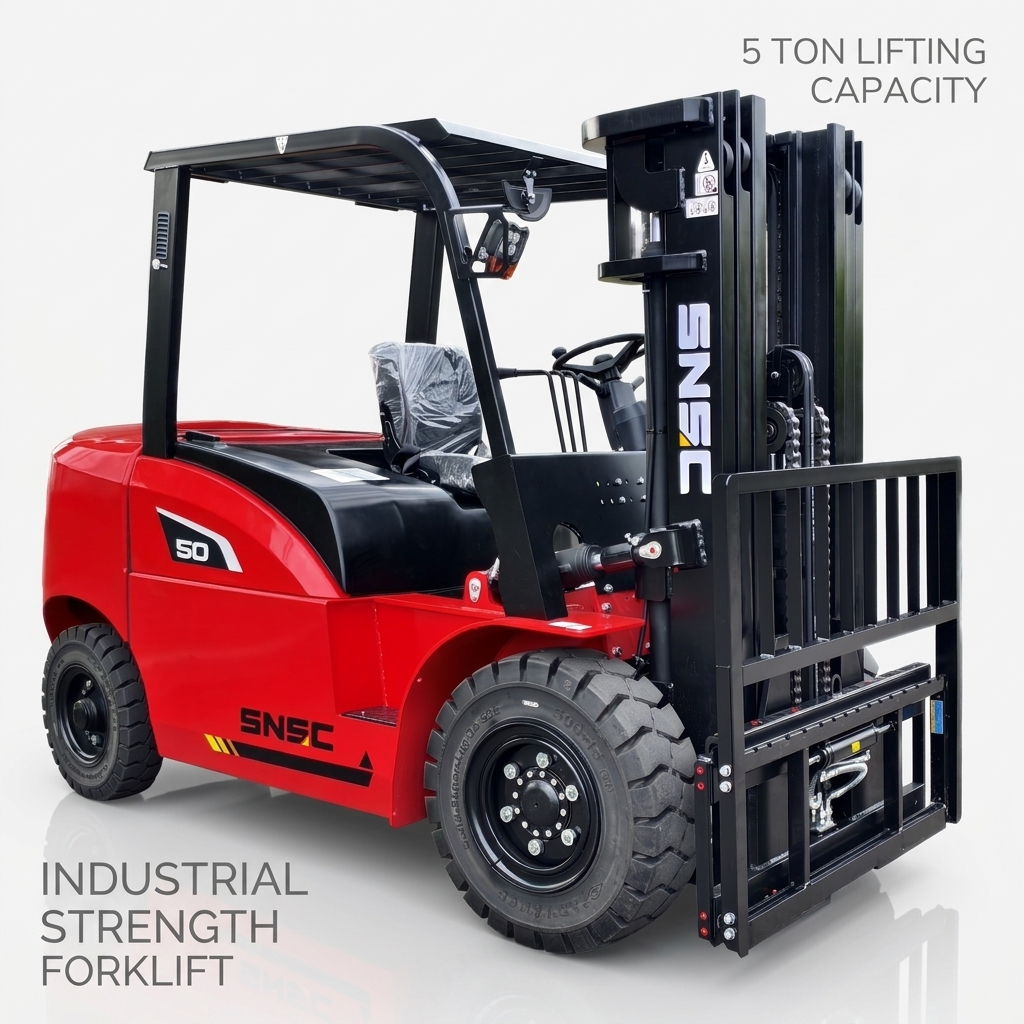

Gallery

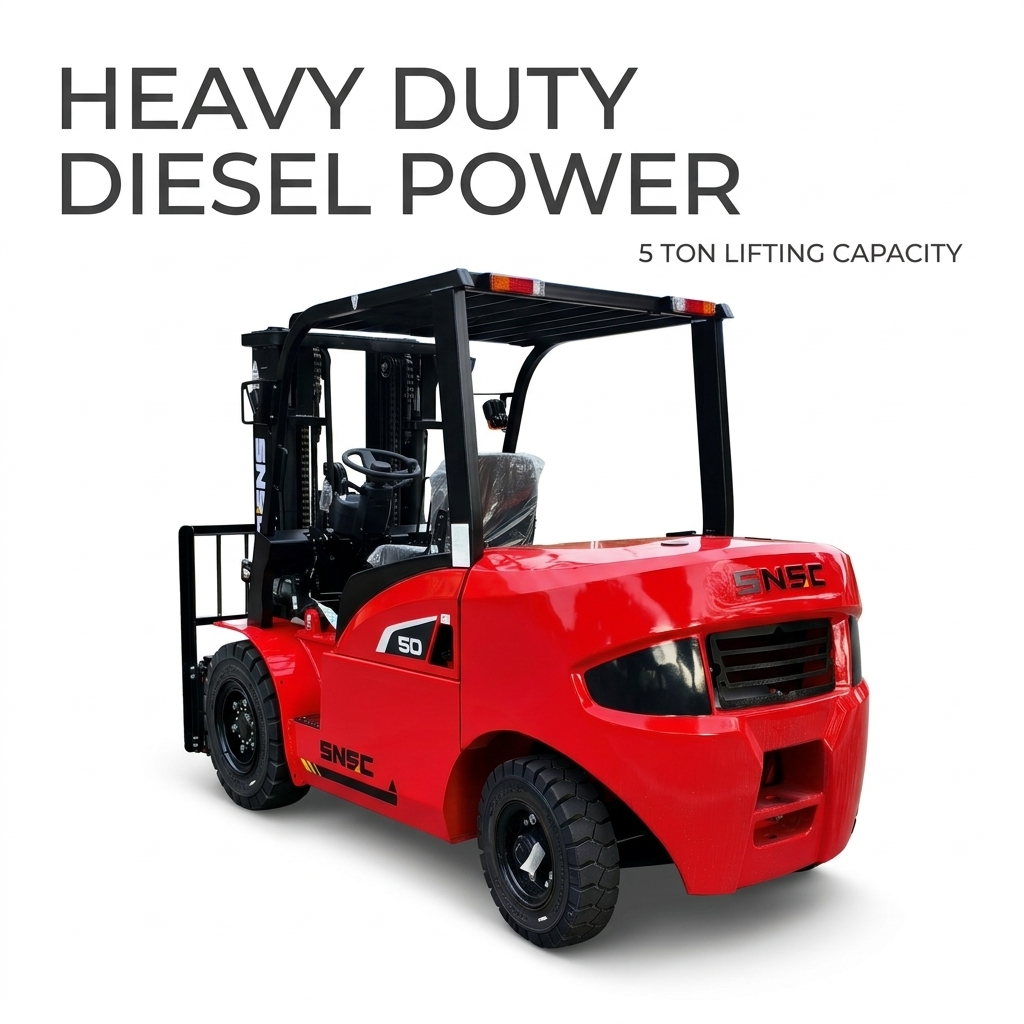

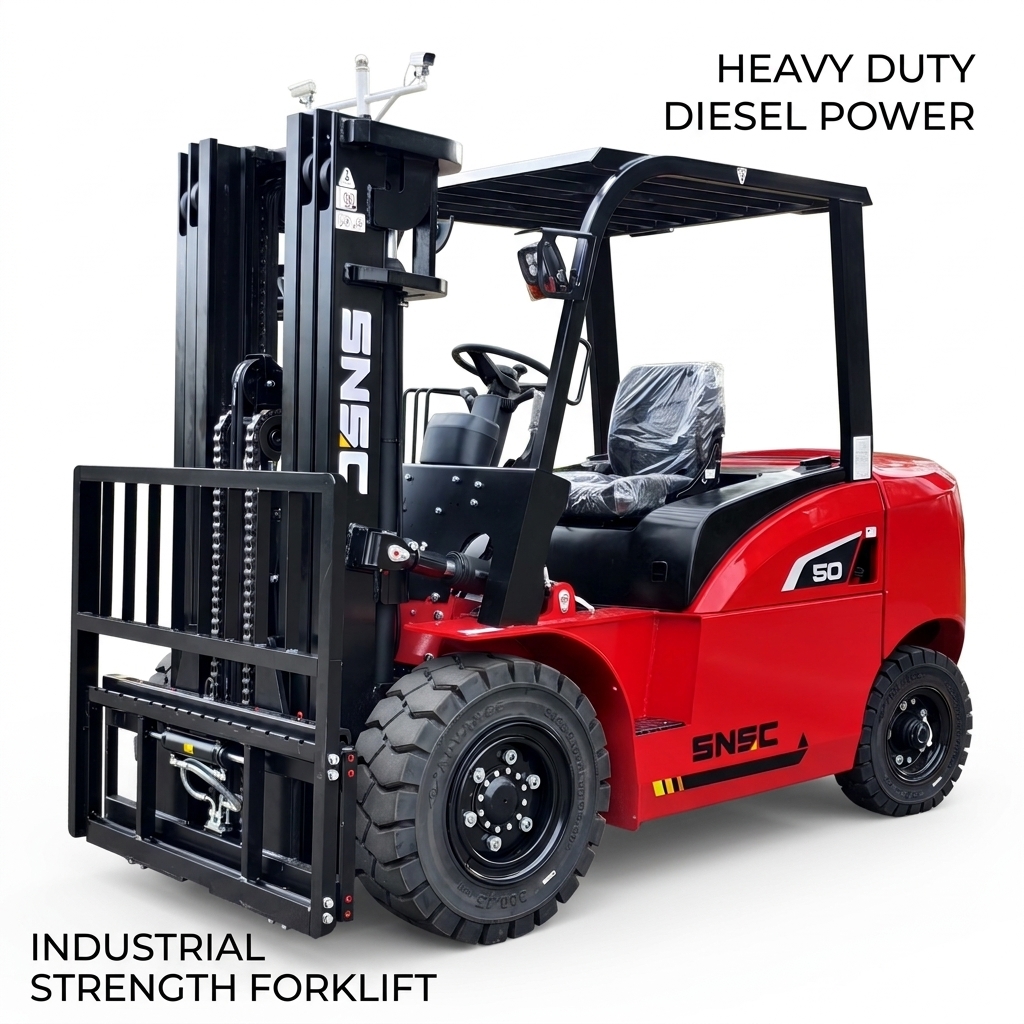

Heavy Load Diesel Forklift 5 Ton For Industrial Applications

Product Description

Heavy Load Diesel Forklift 5 Ton For Industrial Applications

Technical Specifications

Specification	FD50	FD60	FD70	Unit
Power Type	Diesel	Diesel	Diesel	-
Rated Load	5000	6000	7000	kg
Load Center	600	600	600	mm
Lifting Height	3000	3000	3000	mm
Free Lifting Height	203	208	218	mm
Fork Size (LxWxT)	1220x150x55	1220x150x60	122x150x70	mm
Mast Tilt Angle (Front/Rear)	6/12	6/12	6/12	°
Min. Turning Radius	3250	3370	3370	mm
Min. Ground Clearance	200	200	200	mm
Overhead Guard Height	2460	2460	2460	mm
Front Overhang	610	615	625	mm
Max. Travelling Speed (loaded)	26	26	26	Km/h
Max. Lifting Speed (loaded/empty)	370/450	370/450	370/450	mm/s
Max. Traction Force (loaded)	51.4	51.4	51.4	KN
Max. Climbing Ability	20	20	20	°
Overall Length (without fork)	3431	3431	3466	mm
Overall Width	2235	2235	2235	mm
Mast Lowered Height	2500	2500	2500	mm
Mast Extended Height	4417	4417	4417	mm
Tyre - Front	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	-
Tyre - Rear	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	-
Wheel Base	2250	2250	2250	mm
Wheel Thread (Front/Rear)	1470/1700	1470/1700	1470/1700	mm
Weight (without load)	7980	8640	9340	kg
Battery	(12/90)X2	(12/90)X2	(12/90)X2	V/Ah
Engine Model	CY6102BG6	CY6102BG6	CY6102BG6	-
Rated Power	81/2500	81/2500	81/2500	KW/r.p.m
Rated Torque	353/1700	353/1700	353/1700	N.m/r.p.m
No. of Cylinder	6	6	6	-
Bore x Stroke	102 x 118	102 x 118	102x118	mm
Displacement	5.785	5.785	5.785	L
Fuel Tank Capacity	140	140	140	L
Transmission/Shift	1/1 Automatic transmission	-	-	-
Operation Pressure	20	20	20	MPa

Key Features & Design Elements

Chinese or Japanese Engine Options

Auto Electric Hydraulic Transmission

Waterproof Overhead Guard

Suspension Seat with Safety Belt

LED Warning Light

Light Protection Frame

Double Front Tires

Triangle Wider View Back Mirror

Double Filter + High Position Exhaust

Optional Attachments

SNSC forklifts can be equipped with various attachments to enhance functionality, including:

Paper roll clamps
Side shifters
Full free container masts
Bale clamps
Drum clamps
Block clamps
Fork positioners
Tire clamps
Rotators
Carton clamps
Cabins
And more

Front Windscreen

Side Shifter

Hydraulic Fork Positioning

Fully Closed Cabin with AC

Quality Control & Testing

SNSC Forklifts undergo rigorous quality control throughout production and comprehensive testing before delivery. Our inspection process includes both indoor and outdoor testing to ensure optimal performance and reliability.

Tilt Angle Test

Wheel Hug Test

Brake Line Test

Climbing Test

Lifting Test

Turning Test

Global Success Cases

SNSC - "Beyond your needs!" As a professional manufacturer of industrial vehicles, we offer comprehensive solutions for material handling and storage, including diesel forklifts (1.5t to 10t), electric forklifts (1t to 3.5t), LPG gasoline electric stackers, and warehouse trucks.

SNSC Forklift Brand Overview

Isuzu Engine 5Ton to Peru

Isuzu Engine 5Ton to Russia

Mitsubishi Engine 5Ton to Poland

Isuzu Engine 5Ton to Senegal

Isuzu Engine 7Ton to Algeria

Isuzu Engine 7Ton to Gambia

Packaging & Delivery

Each heavy-duty 5-ton diesel forklift truck includes a comprehensive package with Tool Box, Forklift Catalog, Gloves, Operation and Maintenance Manuals, Fork Sleeves, and Spare Parts.

Shipping Capacity: For 5-ton and 6-ton models: 3 units per 40'HQ container. For 7-ton models: 2 units per 40'HQ container.

Our Manufacturing Facility

SNSC ranks among the top 3 forklift manufacturers in China and top 20 globally. With over 300 employees, we maintain a production capacity of 10,000 forklift units per year and export volume of 5,000 sets annually.

Our R&D center is based in Britain, and we've invested 600 million in our forklift factory, utilizing advanced equipment including welding robots to achieve over 95% automation in our production lines.
