Industrial 3 Ton Diesel Forklift With High Stability And Safety

1
MOQ
5900USD
Price
Industrial 3 Ton Diesel Forklift With High Stability And Safety
Features Gallery Product Description Chat Now
Features
Specifications
Type: Diesel Forklift
Engine Type: Diesel
Rated Capacity: 3000kg
Engine: Cummins / KUBOTA / XinchaI A498BPG/Perkins/Yanmar
Attachments: Different Attachments Are Available
Condition: New
Warranty: ONE YEAR
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Color: Customer's Requiement
Highlight:

3 ton diesel forklift

,

industrial diesel forklift with warranty

,

high stability diesel engine forklift
Basic Infomation
Place of Origin: China
Brand Name: SNSC
Certification: CE POCNC ERC CNAS
Model Number: SNSC FD30
Payment & Shipping Terms
Packaging Details: 2set/20GP 5Set/40HQ
Delivery Time: 7-30 working days
Payment Terms: T/T,D/P,D/A,L/C,Western Union,MoneyGram
Supply Ability: 10000 set per month
Product Description
SNSC FD30 Diesel Forklift - 3 Ton Capacity
Heavy-duty 3-ton diesel forklift designed for construction, logistics, and industrial applications with 3000 kg lifting capacity.
Key Advantages
  • Heavy-load 3-ton diesel forklift, rated to lift 3000 kg efficiently
  • Hydraulic lift mechanism enables accurate and stable fork movements
  • Strong chassis and advanced mast construction improve durability
  • Ergonomic driver station offering expanded visibility
  • Ideal for industrial facilities, port operations, logistics centers, and construction fields
  • Backed by a 12-month warranty and 24/7 service response
Product Overview
The SNSC FD30 Diesel Forklift (3 Ton) is built for tough industrial use, offering a 3000 kg load rating and exceptional structural strength. A reinforced mast and heavy-duty chassis ensure stability and safety in challenging environments.
Its diesel engine provides steady torque, smooth mobility, and energy-efficient performance. With its advanced hydraulic controls, operators can easily perform precise lifting and tilting tasks. The ergonomic cabin design helps reduce fatigue during long work sessions.
Applications
  • Warehousing and logistics
  • Manufacturing and assembly plants
  • Construction and infrastructure projects
  • Port freight operations
  • Outdoor rugged terrain handling
Working Principle
The engine sends power to the hydraulic pump, creating lifting pressure. Steering and braking systems support reliable and safe movement under load.
Technical Specifications
Specifications Unit FD30
Power -- diesel
Rated Capacity kg 3000
Center of load mm 500
Lifting height mm 3000
Free lifting height mm 145
Forks L×W×H mm 1070×125×45
Tilt Forward/Backward . 6/12
Min.turning radius mm 2600
Min.ground clearance(Mast) mm 120
Overhead guard height mm 2170
Front overhang mm 545
Max.traveling speed(loaded) km/h 20
Max.lifting speed(loaded/empty) mm/s 470/520
Drawback pull/Grade ability kN/% 18/20
Overall length (without fork) mm 2825
Overall width mm 1230
Mast lowered height mm 2065
Mast extended height mm 4260
Front Tire -- 28×9-15-12PR
Rear Tire -- 6.50-10-10PR
Wheelbase mm 1800
Tread width Front/Rear mm 1000/970
Curb weight None-load kg 4250
Battery Voltage/Capacity V/Ah 12/90
Engine Model -- XC490BPG
Rated power kw/r.p.m 37/2650
Rated torque Nm/r.p.m 148/2000
Cylinder amount -- 4
Bore×Stroke mm 90×105
Displacement -- 2.54
Fuel tank L 70
Transmission -- 1/1 automatic transmission
Working pressure MPa 17.5
Premium Features
  • Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward
  • Japan hydraulic system, by using Shimadzu brand Valve and Pump
  • USA Eaton steering gear
  • LED light, with long durability time
  • Copper Water tank, with better heat radiation
  • Red/yellow/green colors for your reference
Optional Features
Japan Isuzu/Mitsubishi engine, Side shifter, Double front tires, Solid tire, Double air filter, Vertical exhaust, fork extension, Cab, Fork positioner.
Product Gallery

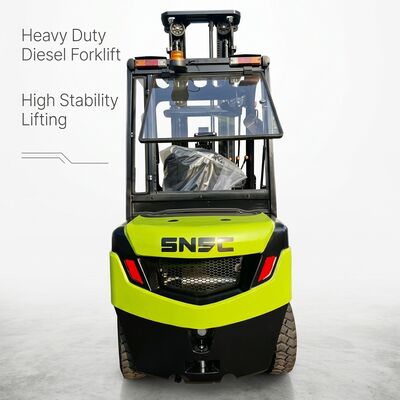

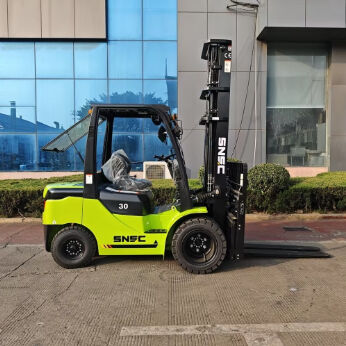

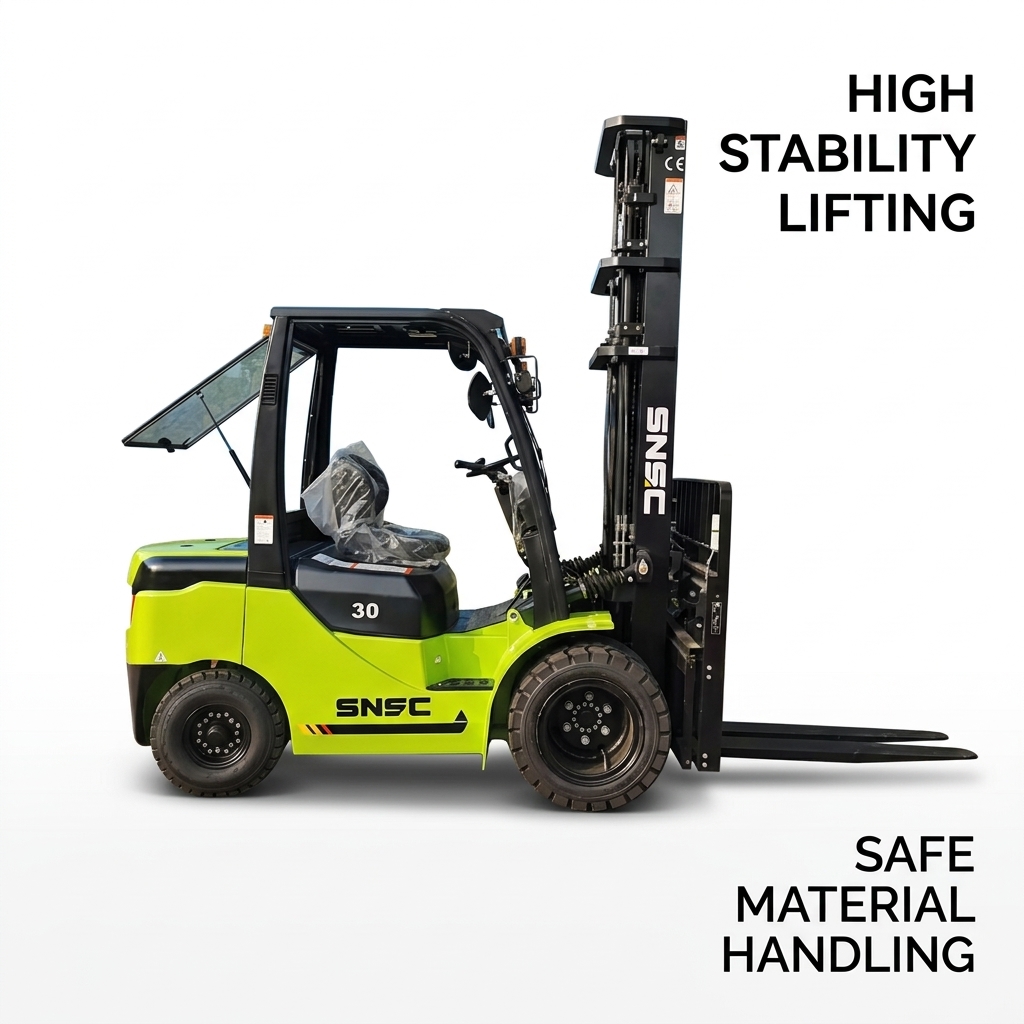

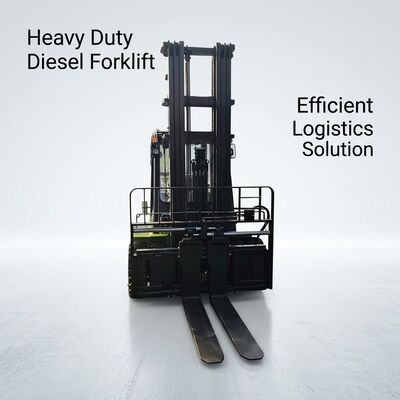

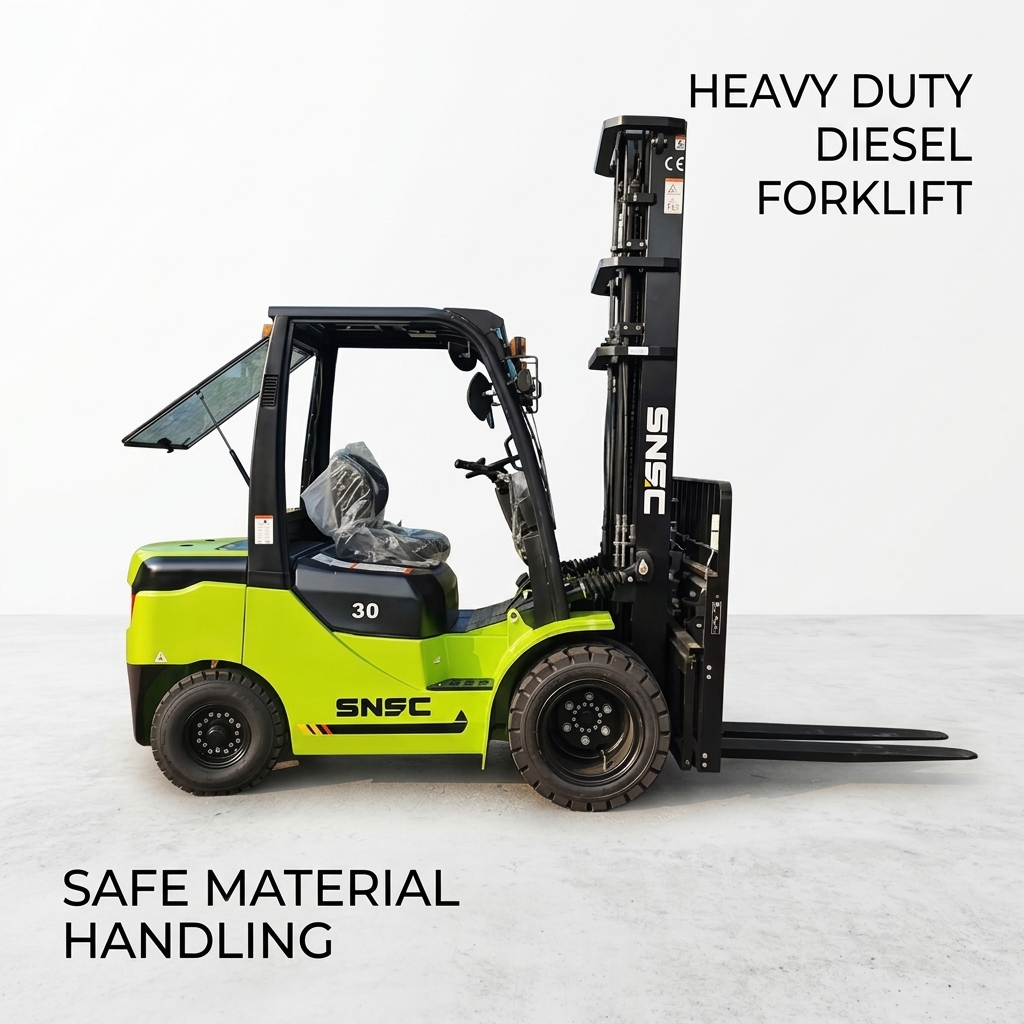

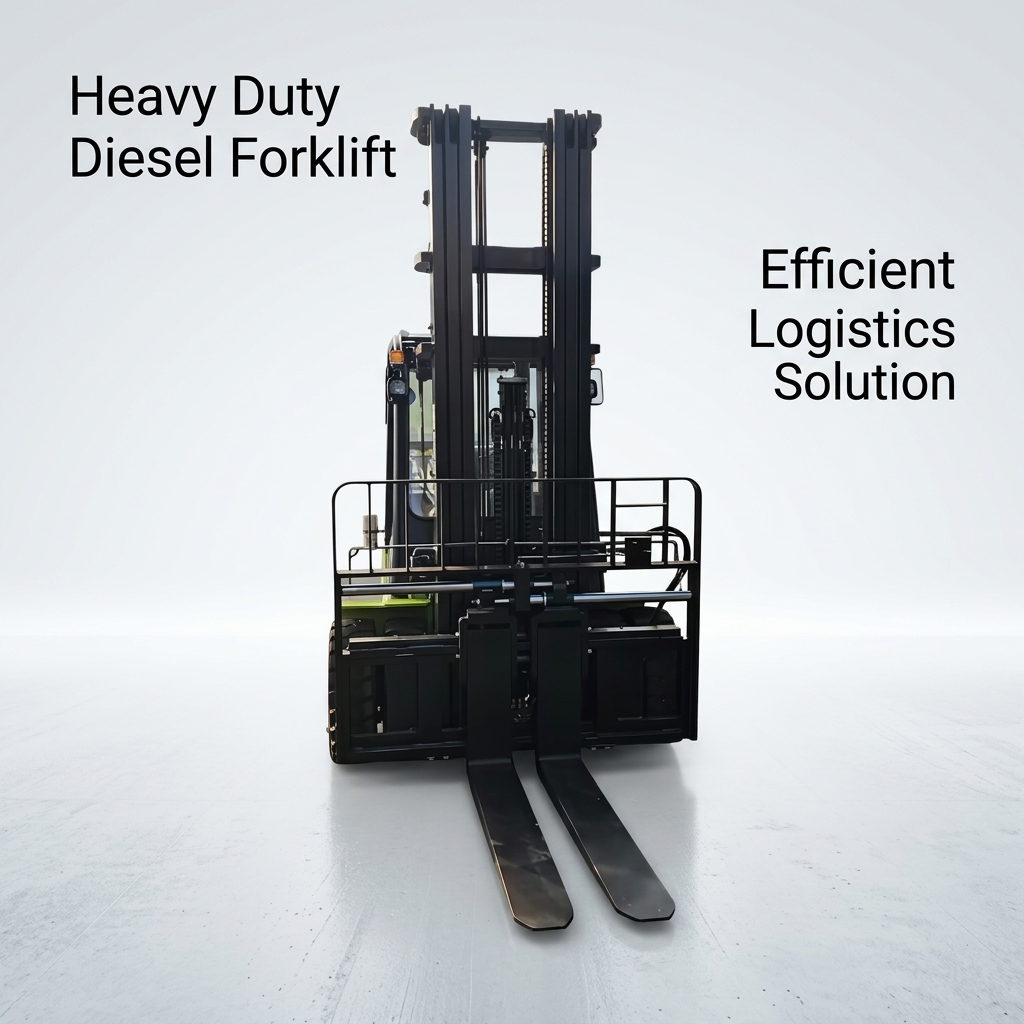

Industrial 3 Ton Diesel Forklift With High Stability And Safety 0Industrial 3 Ton Diesel Forklift With High Stability And Safety 1

After-Sales Service & Support
Why You Can Trust Us:
  • A solid 12-month warranty protects every SNSC FD30 forklift
  • Our experts are available 24/7 online for instant support
  • Full operator training and maintenance consulting included
  • We maintain a steady supply of essential spare parts year-round
  • Fast-response parts dispatch keeps your business moving
  • Continuous lifetime operation and maintenance support for all customers
